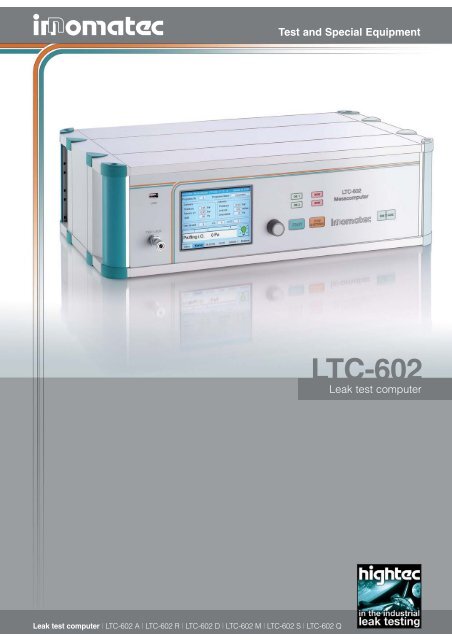

Leak test computer | <strong>LTC</strong>-<strong>602</strong> A | <strong>LTC</strong>-<strong>602</strong> R | <strong>LTC</strong>-<strong>602</strong> D | <strong>LTC</strong>-<strong>602</strong> M | <strong>LTC</strong>-<strong>602</strong> S | <strong>LTC</strong>-<strong>602</strong> Q<br />
Test and Special Equipment<br />
<strong>LTC</strong>-<strong>602</strong><br />
Leak test computer
Perfection is created when a profession becomes a mission<br />
The <strong>LTC</strong>-<strong>602</strong> leak test computer is the latest top mo<strong>de</strong>l in<br />
our successful <strong>LTC</strong> leak tester series. With this we push<br />
back the boundaries of leak measuring technology. The<br />
<strong>LTC</strong>-<strong>602</strong> enables the complete functionality of the PC to<br />
be used for rapid and precise measurements of pressure<br />
differences and flow, even in extreme situations. The integrated<br />
PC leaves nothing to be <strong>de</strong>sired when it comes<br />
to user-friendliness. The future-oriented control using<br />
one button and Windows technology is intuitive and easy<br />
to operate. Inputting errors are prevented. In addition, all<br />
parameters can be seen at a glance, so the subsequent<br />
assessment of the measuring processes can be carried<br />
out without difficulty. The <strong>LTC</strong>-<strong>602</strong> communicates directly<br />
with all the peripherals for transfer, management and<br />
analysis of data and machine control. The test process<br />
becomes noticeably more efficient. Another technological<br />
innovation is the unique analog module with the 24-bit A/<br />
D converter. The module enables an unequalled <strong>de</strong>tailed<br />
discrimination of the measuring signal. This means<br />
that a huge amount of extra information is available for<br />
monitoring the measuring process and ensuring that the<br />
measurements can be reproduced as accurately as possible.<br />
Consi<strong>de</strong>ring the outstanding measuring concept<br />
and the wi<strong>de</strong> range of different functions, the <strong>LTC</strong>-<strong>602</strong> is<br />
on sale at a particularly attractive price. This makes it an<br />
investment with an assured future on all fronts.<br />
�<br />
The PC platform with the integrated PC<br />
system guarantees reliability, flexibility and an<br />
assured future.<br />
2 Leak test computer | <strong>LTC</strong>-<strong>602</strong> A | <strong>LTC</strong>-<strong>602</strong> R | <strong>LTC</strong>-<strong>602</strong> D | <strong>LTC</strong>-<strong>602</strong> M | <strong>LTC</strong>-<strong>602</strong> S | <strong>LTC</strong>-<strong>602</strong> Q
Test and Special Equipment<br />
<strong>LTC</strong>-<strong>602</strong> – the innovation for standard and special solutions<br />
The <strong>LTC</strong>-<strong>602</strong> puts into practice the know-how and<br />
expertise of more than 20 years in leak test technology.<br />
It can be used for the most diverse test specifications,<br />
such as:<br />
� Test pressures – from vacuum to 50 bar overpressure<br />
� Test times – in milliseconds, seconds and minutes<br />
� Leak rates – for all kinds of functional leakage tests<br />
� Pressure differences – from 0.1 Pa to 5000 Pa<br />
� Test volume – from a few millilitres to 100 litres<br />
� Environmental conditions – with special adaptations<br />
for a wi<strong>de</strong> range of sectors (temperature, etc.)<br />
Highly complex leak and function test systems constantly<br />
require measuring <strong>de</strong>vices with special characteristics<br />
and test processes.<br />
This is precisely what the <strong>LTC</strong>-<strong>602</strong> is <strong>de</strong>signed for. With<br />
its extensive range of accessories for extra measurements,<br />
processes and analyses, the <strong>LTC</strong>-<strong>602</strong> also<br />
offers you the opportunity to realise special solutions<br />
easily, quickly and profitably.<br />
Unusual test specifications are a daily chall<strong>eng</strong>e for us.<br />
We look forward to your request!<br />
The <strong>LTC</strong>-<strong>602</strong> offers virtually unlimited possibilities<br />
for all kinds of leak measurement<br />
tests using the differential pressure and flow<br />
methods.<br />
�<br />
3
The expert in customisation<br />
The <strong>LTC</strong>-<strong>602</strong> leak test computer is <strong>de</strong>signed for professional<br />
continuous operation in batch production conditions.<br />
All the modules, such as computer unit, measuring<br />
technique, pneumatic, control and display elements,<br />
are integrated in one housing: Reliable, robust<br />
and space-saving. The large colour monitor, which can<br />
be read in daylight, always <strong>de</strong>livers reliable information<br />
about measurement results, processes and test data,<br />
including the recording of historical data. Standard<br />
equipment inclu<strong>de</strong>s the displaying and gathering of<br />
extensive statistics and measurement curves.<br />
<strong>LTC</strong>-<strong>602</strong> A<br />
Differential pressure measurement Absolute<br />
<strong>LTC</strong>-<strong>602</strong> R<br />
Differential pressure measurement Relative<br />
Control by the user is possible, as is the user-specific<br />
adaptation of the language and units of measure. A<br />
ring memory (FIFO) saves the latest 100 measurement<br />
results safely (optional: 2000 measurements). The <strong>LTC</strong>-<br />
<strong>602</strong> can be fitted with a wi<strong>de</strong> range of mass memories,<br />
fixed discs, networks and extra bus systems. Using<br />
numerous interfaces, the <strong>LTC</strong>-<strong>602</strong> can be integrated<br />
into fully automatic test machines and processes and<br />
is capable of running small <strong>de</strong>vices directly.<br />
<strong>LTC</strong>-<strong>602</strong> D<br />
Differential pressure measurement Batch method<br />
Differential pressure measurement Absolute Differential pressure measurement Relative Differential pressure measurement Batch Method<br />
The computing marvel with the powerful heart<br />
In the analog module of the leak test computer the<br />
incoming information is processed and converted<br />
into digital signals. The excellent<br />
<strong>de</strong>tailing of the measuring data guarantees<br />
a high level of reproducibility. This means<br />
that the effect of any interference factors<br />
on the measured object will be recognised<br />
and indicated at an early stage.<br />
Even un<strong>de</strong>r difficult measuring<br />
conditions, the <strong>de</strong>tailed measurement<br />
data (pressure and temperature<br />
variation) guarantees an<br />
accurate analysis of the test situation<br />
and the corresponding adaptation of the<br />
parameters.<br />
The 24-bit analog-digital converter converts the measuring signal into more than 1 million phases. This measurement with precise<br />
<strong>de</strong>tailing guarantees a hitherto unparalleled precision, even over very large measuring ranges, and makes the otherwise usual<br />
complicated and expensive hardware modifications unnecessary.<br />
4 Leak test computer | <strong>LTC</strong>-<strong>602</strong> A | <strong>LTC</strong>-<strong>602</strong> R | <strong>LTC</strong>-<strong>602</strong> D | <strong>LTC</strong>-<strong>602</strong> M | <strong>LTC</strong>-<strong>602</strong> S | <strong>LTC</strong>-<strong>602</strong> Q<br />
�
<strong>LTC</strong>-<strong>602</strong> M<br />
Mass flow measurement Leakage<br />
<strong>LTC</strong>-<strong>602</strong> S<br />
Pressure increase measurement<br />
Mass flow measurement leakage Pressure increase measurement<br />
Test and Special Equipment<br />
The <strong>LTC</strong>-<strong>602</strong> can be supplied for all leak measurement<br />
processes (pressure difference, flow,<br />
compensation and reference methods) and<br />
volume measurements. As a one channel or two<br />
channel system with 2 autonomous measuring<br />
channels.<br />
In addition every <strong>LTC</strong>-<strong>602</strong> can easily be adapted<br />
to the customer’s individual requirements.<br />
The <strong>LTC</strong>-<strong>602</strong> gives an entirely new dimension<br />
to the term flexibility.<br />
�<br />
<strong>LTC</strong>-<strong>602</strong> Q<br />
Volume measurement<br />
Good contactual characteristics and connection guarantee<br />
The PC platform and the software <strong>de</strong>veloped for the<br />
<strong>LTC</strong>-<strong>602</strong> enable the connection of peripherals such as:<br />
� Barco<strong>de</strong> scanner<br />
� Printer with USB interface<br />
� Printer with parallel interface<br />
� Marker units<br />
� Machine control<br />
� Matrix scanner<br />
� Mo<strong>de</strong>m<br />
� Networks<br />
� PC<br />
� USB stick<br />
� Control unit for<br />
simple equipment<br />
Apply Apply today today for for the the <strong>de</strong>tailed <strong>de</strong>tailed data data sheets<br />
concerning concerning the the measuring measuring process! process!<br />
Volume measurement<br />
Team spirit:<br />
The <strong>LTC</strong>-<strong>602</strong> is compatible with all mo<strong>de</strong>rn peripheral communication<br />
equipment and therefore simplifies the analysis<br />
and management of the computed measurement results.<br />
�<br />
5
The communication marvel that speaks your language<br />
The <strong>LTC</strong>-<strong>602</strong> has an effective language module with<br />
pre-installed languages (German, English, French,<br />
Spanish, Dutch, Slovak) – easy to select via the<br />
menu.<br />
All measurement data<br />
can be stored on the<br />
PC or on a USB stick for<br />
later analysis or archiving.<br />
Software extensions or hardware<br />
configurations can be<br />
installed – automatically – via the<br />
USB stick<br />
Updates can be loa<strong>de</strong>d on the USB stick by email<br />
or via Internet.<br />
Data can be exchanged easily and<br />
efficiently at any time by mo<strong>de</strong>m, e-mail<br />
or USB stick (Plug & play).<br />
Service is our str<strong>eng</strong>th – we are ready to start<br />
Our technicians will offer you advice and support on<br />
site, at your machines and at your workstations.<br />
It goes without saying that the <strong>LTC</strong>-<strong>602</strong> can be<br />
exten<strong>de</strong>d to inclu<strong>de</strong> all world languages at any time,<br />
anywhere, by e-mail and USB stick.<br />
6 Leak test computer | <strong>LTC</strong>-<strong>602</strong> A | <strong>LTC</strong>-<strong>602</strong> R | <strong>LTC</strong>-<strong>602</strong> D | <strong>LTC</strong>-<strong>602</strong> M | <strong>LTC</strong>-<strong>602</strong> S | <strong>LTC</strong>-<strong>602</strong> Q<br />
�<br />
We will assess your individual test situation and<br />
configure the <strong>LTC</strong>-<strong>602</strong> on the basis of the required<br />
task setting.<br />
As a service we offer test measurements and initial<br />
samplings in our laboratory.<br />
In addition, <strong>de</strong>pending on your contract, we will<br />
make our 24 hour service available to you.<br />
Our service also inclu<strong>de</strong>s:<br />
� Method advice and optimisation of measurement data<br />
� Calibration service and maintenance<br />
� Technical support, even for the products of third<br />
parties<br />
� Measuring system analyses<br />
� <strong>LTC</strong>-<strong>602</strong> hire equipment, available immediately<br />
� Hire equipment for leak-rate simulation
Assess it on its performance<br />
PC platform<br />
� Full PC functionality<br />
� Fully suitable for network (all Windows network<br />
functions), for example via integrated FTP server<br />
� Suitable for WLAN<br />
� A USB mo<strong>de</strong>m or printer can be connected (Plug<br />
& Play)<br />
� Supports your external PC components (barco<strong>de</strong><br />
scanner, data matrix camera, marker units, etc.)<br />
� Can be connected and operated using remote<br />
control or computer mouse (including cordless<br />
mouse). Can be operated via USB stick<br />
Can be operated via USB stick<br />
� The following functions are possible using the<br />
USB stick:<br />
� Data security<br />
� � Data back-up<br />
� ��Data storage<br />
��Parameter control via Excel (data transfer<br />
between PC and <strong>LTC</strong>-<strong>602</strong>)<br />
��Parameter transfer between different <strong>LTC</strong><br />
� Installation of updates such as language<br />
modules, Network configuration, printer drivers<br />
with automatic installation<br />
Function extension<br />
� Temperature compensation for extreme environmental<br />
conditions<br />
��Program elements for measuring system<br />
analysis<br />
���Curve display for test pressure and<br />
temperature<br />
���Analysis algorithms for scientific analyses<br />
���Automatic parameter selection for optimum<br />
test times<br />
� Expansion of storage capacity for the<br />
measurement data via random mass memory<br />
��Extension of the number of parameters from<br />
100 to 1000 parameter progressions<br />
The possibility of connecting a cordless mouse<br />
means that the <strong>LTC</strong>-<strong>602</strong> can also be operated comfortably<br />
even in less accessible places.<br />
�<br />
Special solutions<br />
Test and Special Equipment<br />
� The <strong>LTC</strong>-<strong>602</strong> is available with 1 or 2 channels<br />
(with autonomous measuring processes)<br />
� The <strong>LTC</strong>-<strong>602</strong> can be quickly and cheaply adapted<br />
for special applications via our own software and<br />
hardware <strong>de</strong>velopment:<br />
� Combination of various tests<br />
� Hydrodynamic pressure or opening tests<br />
� Testing battery, „High-speed“ mo<strong>de</strong>l<br />
� Testing battery with extra large flow<br />
� Functional test without leak test<br />
� Functional test before/after leak test<br />
� Adjustment controls<br />
� Implementation of other measurements, such<br />
as l<strong>eng</strong>th, torque, resistance<br />
Service<br />
� Service monitoring with cycle and operating hour<br />
counter<br />
� Calibration service via the mo<strong>de</strong>m<br />
� Replacement equipment for use during service or<br />
maintenance work<br />
� Display of switch status of inputs and outputs on<br />
integration in an automatic test system<br />
Monitoring equipment<br />
Corresponding monitoring equipment is available for<br />
the <strong>LTC</strong>-<strong>602</strong> leak test computer:<br />
� Adjustable calibration leakage<br />
� Fixed calibration leakage<br />
7
Prüfanlagen | Schnellanschlüsse | Leck-Messcomputer<br />
Test systems | Quick connectors | Leak test computer<br />
Bancos <strong>de</strong> prueba | conexion rapidas | Microfugómetro<br />
Test and Special Equipment<br />
Referenzen | References | Referencia<br />
AB Elektronik | ABB | ABS-ASR Prerov | Actaris | Adam Opel AG | Afag | Agrodur | AKG | Alfmeier | ALGI | Allgaier<br />
| Alpha Plan | Althin Medical | Angiomed | Aqua Butzke-Werke | AUDI AG | Autoliv | B. Braun | Behr | Benteler | Beru<br />
| Bielomatik Bischoff | Blackwood | BOA | Bocar | Borg Warner | Bosal | Bosch-Siemens | Boysen | BP Chemicals |<br />
Branson | Braun AG | Braun Biotech | Brita | Brose | Brötje | BSW Kitchen China | Bückle | Bu<strong>de</strong>rus | Bühler Motoren |<br />
Calsonic Kansei CareMed | Continental Teves | Conti Tech | Cooper | DAF Trucks | Daimler Chrysler AG | Dana | Delphi |<br />
Deta | Deutz AG Dreiha-Werk | Dornbracht | DURA | Eaton | Eberspächer | Elster | Emerson | Ernst | Evo Bus | EXIDE<br />
| Expert | FAG AG Faurecia | FCI | Filtros MANN S.A. | Fon<strong>de</strong>rie | Ford Werke AG | Fresenius AG | Fresenius Medical<br />
Care AG Freu<strong>de</strong>nberg KG | Friedrich Grohe AG | Fröling | Frötek | FTE | Gar<strong>de</strong>na Kress | Geberit | Geiger Technik |<br />
Georg Fischer Mössner | Getrag | Gillet Exhaust | GMT | Grammer AG | Grundfos | Guss- und Armaturenwerk | Hagen<br />
| Hal<strong>de</strong>x Handtmann | Hansa AG | Hayley Group | Hella KG | Henkel KG | Heraeus Med | Hiby TEC | Hirschmann | HJS<br />
Hoppecke Huba AG | IDEAL-Standard | Ilpea | Inergy Integral | ITT | IWK | Jura | KACO | Kammerer | Kärcher | Kautex<br />
Textron Kayser | Kemper | Kendrion | King Plastic | KKW Obrigheim | KKW Sta<strong>de</strong> | Kludi | Kolbenschmidt AG | Komatsu<br />
Hanomag KONI | Kostal | Köver | Kromschrö<strong>de</strong>r AG | Krupp Bilstein | Krütten | KS Aluminium | Küster | Lahmeyer AG |<br />
Landis & Staefa Leifheit AG | Leistritz AG | Liebherr | LuK-AT | Magnet Schultz KG | Mahle | Maico | MAN AG | Mann &<br />
Hummel Mannesmann VDO AG | Mawick MB-Guss | MDS Abele | Membrana | Merce<strong>de</strong>s Benz Lenkungen | Mekutec<br />
| MGG Miele | Modine Climate Systems | Modine Europe | murrplastik | Neff | Nefit Fasto Oechsler AG | Omniplast |<br />
Ondal Optimed | Oventrop | Pfeifer Vakuum | Pierburg AG | Piller | Pletscher AG | Poppe & Potthoff | Porsche AG | Prinz |<br />
PVI Ltd. | Rege Reflex Otto Heat | Rehau AG | Rhein-Bonar | Rhenus | Polytec Riesselmann | Ritter | Ritz | Rowenta | Robert<br />
Bosch | Rowenta | Roxell | Sandvik | Sartorius AG | Saxonia medical | Schlumberger | Seeber | Siemens Automotive<br />
AG Siemens VDO AG | Simrax | SIRONA | SIROPLAST | Spang & Brands | Spirotech | Sternplastic | Steyr-Daimler-Puch<br />
Stiebel Eltron | Stihl AG | SWF | Techno-Chemie | Tenneco Ltd. | Thyssen Krupp | Ti automotive Systems | Truma<br />
TRW | VACUFLEX | Vaillant | Valeo | Varta Bosch | VDO WUHU China | Veritas AG | Viessmann | Vogel AG | Volkswagen<br />
AG | Voswinkel | Vygon | WABCO | Wahler | Walbro | Walker | Webasto | Wehrle | Weishaupt | Weso | Wiesauplast | Wilo<br />
Witzenmann | WOCO | Wolf | Zeuna Stärker | ZF-Sachs | ZF Lenksysteme<br />
<strong>innomatec</strong> Test- und Son<strong>de</strong>ranlagen GmbH<br />
Am Wörtzgarten 12 · D-65510 Idstein/Taunus<br />
Tel. +49 (0) 6126-94 20 0 · Fax +49 (0) 6126-94 20 40<br />
e-mail: <strong>innomatec</strong>@<strong>innomatec</strong>.<strong>de</strong> · www.<strong>innomatec</strong>.<strong>de</strong><br />
Abroad agencies<br />
China | France | Italy | Canada | Korea | Mexico | The<br />
Netherlands | Austria | Poland | Switzerland | Slovakia<br />
Spain | The Czech Republic | Turkey | Hungary | India
