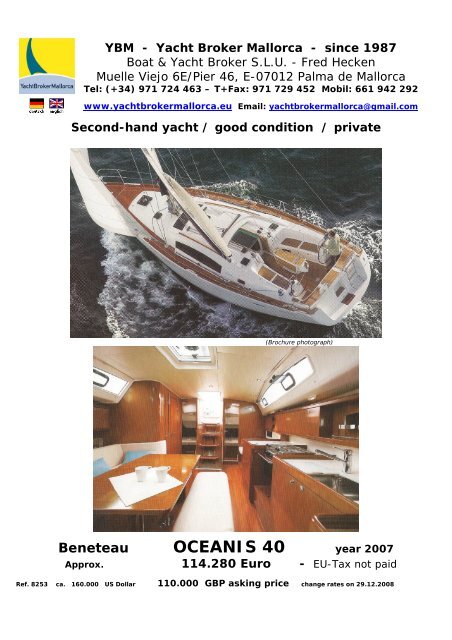

YBM - Yacht Broker Mallorca - since 1987<br />
Boat & Yacht Broker S.L.U. - Fred Hecken<br />
Muelle Viejo 6E/Pier 46, E-07012 Palma de Mallorca<br />
Tel: (+34) 971 724 463 – T+Fax: 971 729 452 Mobil: 661 942 292<br />
www.yachtbrokermallorca.eu Email: yachtbrokermallorca@gmail.com<br />
Second-hand yacht / good condition / private<br />
(Brochure photograph)<br />
<strong>Beneteau</strong> <strong>OCEANIS</strong> <strong>40</strong> <strong>year</strong> <strong>2007</strong><br />
Approx. 114.280 Euro - EU-Tax not paid<br />
Ref. 8253 ca. 160.000 US Dollar 110.000 GBP asking price change rates on 29.12.2008
Built by <strong>Beneteau</strong> France to category A<br />
Design Berret-Racoupeau, Interior by: NAUTA design<br />
Material:<br />
All GRP with teak on cockpit seats and floor. White hull<br />
Lying:<br />
Europe / Spain / Balearic Islands Mallorca/Ibiza/Menorca<br />
Length over All 12.15 m 39´10”<br />
Length hull 11.82 m 38´9”<br />
Length waterline 10.35 m 33´11”<br />
Beam 3.91 m 12´9”<br />
Draught 1.90 m 6´2”<br />
Displacement<br />
8.260 kg<br />
Tank: Fuel<br />
200 litres<br />
Tank: 2x Freshwater, total 360 litres<br />
Tank: 2x Holding<br />
80 litres<br />
RIG & SAILS: sloop rig • Standard mast 9/10 aluminium, deck stepped, 2 levels of advanced cross<br />
trees • Boom in aluminium • Standing rigging in single-strand stainless steel • 2 Backstays with<br />
turnbuckles • Rigid boom down-haul with tackle • Genoa furling system • Complete running rigging<br />
• sheet clutches • Winches: 2 x Harken 46.2STC genoa winches - 1 x harken <strong>40</strong>.2STC manoeuvring<br />
winch - 1 x electric manoeuvring winch to port<br />
SAILS: Furling genoa with UV protective strip<br />
• Semi full batten main sail with slider and roller slider, Lazy Jack and Easy bag in pearl grey colour<br />
ENGINE: YANMAR 3JH4E <strong>40</strong> hp diesel engine, approx. 90 engine hours • Engine control - Control<br />
panel in cockpit • Engine compartment: Soundproofing foam - Ventilation: 1 air intake and 1<br />
pressured air outlet • Alternator 12 V /80 Ah • Electronic gauge - Low level alarm • Filters: Sea water<br />
- Diesel – Decanter • Stainless steel shaft • Fixed 3-blade propeller • Engine access through<br />
companionway (opening with 2 gas pistons) + 2 Engine access through aft cabins<br />
BOW THRUSTER fitted<br />
ELECTRICAL: 12V boat current - Electrical panel (Fuses - Voltmeter - Water + Fuel gauge - Battery<br />
+ Fuel + Water warning) - Charge divider • Socket 12 V • Lighting: Halogen ceiling lights - Reading<br />
lights - Fluorescent lamp White • 220 V Shore power supply with cable & 220V sockets + battery<br />
charger 25 Amp - Smart charger - Charge distributor - 2x service batteries 1<strong>40</strong> Ah each + starter<br />
battery 110 Ah – Engine alternator - Navigation lights<br />
FRESHWATER, PLUMBING: 2 rotation moulded freshwater tanks (200 l Starboard aft cabin - 160 l<br />
Forward cabin) - 2 Deck fillers, separate tank filling - Hot & cold pressurized water system<br />
throughout + plus floor operated sea water pump • Pressurised electric water pump - Expansion<br />
chamber - System protection filter • Electric water heater 25 L (engine run) • Rigid sewage water<br />
tank 80L • Electrical shower drain pumps • Electric bilge pump - Manual bilge pump • Electric ice box<br />
drain pump - shower at stern - holding tanks 2x<br />
NAUTICAL / NAVIGATION: aft cockpit with TWIN helm station, 2x compass, steering wheels –<br />
engine control lever and instrument panel fitted: instruments: RAYMARINE Electronic pack B2<br />
• log/speed & echo sounder + wind speed / direction ST60+<br />
• autopilot Pilot remote control ST60002 + LSRV2<br />
• VHF radio Raymarine Ray 54E<br />
• GPS/Chart Plotter & Radar C80 LCD colour screen<br />
VARIOUS & SAFETY:<br />
• Up/down 1000W electric windlass with remote in cockpit, Anchor and chain<br />
• LIFE RAFT – Safety equipment - Fire extinguishers - Emergency tiller<br />
• Bimini sun top in Pearl Grey and Spray hood in Pearl Grey<br />
• Cockpit cushions in Pearl Grey + 2 x wheel covers in Pearl Grey<br />
• Cockpit table (Teak slatted, cover) + 12v socket on cockpit table with moveable lamp<br />
• Warps & fenders - 2 flag halyards - Mosquito screens<br />
• inflatable dinghy + outboard engine + outboard brackets
CONSTRUCTION: EC certification • Monolithic hull design in polyester • Monolithic structural<br />
counter moulding laminated and stuck to hull • Deck in balsa and glass fibre sandwich, non-slip<br />
surface • Deck hull join solid wood bulwark • Cast iron keel • Hung rudder with stainless steel stock •<br />
White coloured hull • Self-bailing chain locker • Single roller stainless steel S/S) bow fitting with offset<br />
roller • 6 Aluminium mooring cleats – S/S deck line protection • half-open S/S forward pulpit – Step •<br />
2 S/S aft pushpits • 1 Ring lifebuoy bracket • Double guardrail and S/S stanchions - Gangway<br />
opening to port and to starboard – aft cockpit: 2 Cockpit locker • 1 Locker under tiller seating to<br />
starboard • Wet locker between tiller seats • Cockpit benches decked in natural solid wood • 2<br />
Steering wheel consoles: S/S steering wheels - leather covered – S/S guard rail - navigation<br />
instrument stand • 2 Companionway door on solid wood hinges - Sliding hatch, access to bathing<br />
platform with folding, S/S bathing ladder with teak treads<br />
ACCOMMODATION / LAYOUT<br />
3 double cabins/6 berth – 2x head compartments (wash rooms moulded watertight)<br />
Upholstery in cream fabric. Alpi woodworking in fruit tree colour - Parquet type laminated floors -<br />
Cloth hull spar ceilings in saloon and cabins - Mosquito net + blinds or curtains fitted<br />
COMPANIONWAY: • Headroom (HR):1.90 m • Wooden saloon companionway with moulded wood<br />
hanging steps with non-slip surface • 2 Stainless steel (S/S) guardrails<br />
FORWARD CABIN: • HR:1.87 m • Central double bed (2.00 m x 1.75 m x 0.44 m) • Portside<br />
seating • Hanger closets - Glove box - Cubby hole locker - Storage drawer – Locker storage •<br />
Dressing table with removable locker seat • 2 Opening hatches + Hull portholes<br />
FORE WASHROOM: • HR:1.89 m • Access through forward cabin • Separate shower, hot/cold (h/c)<br />
water shower mixer tap • marine toilet • Washbasin, Mixing tap h/c water • Opening deck hatch<br />
SALOON: • HR:1.95 m• U shaped saloon bench • Central bench seat with storage locker • Saloon<br />
table • Cubby hole lockers - Storage space along the hull - Storage under bench seats • Cubby hole<br />
with S/S beading • 2 Panoramic deck house windows • Hull porthole • Fixed deck house side window<br />
• Porthole opening onto coamimg in side window • Opening deck hatch<br />
CHART TABLE: • Table with flap - Glove box - Storage - Shelf- Moulded wood beading • Helmsman<br />
seat with cushion• Pivoting electrical panel enabling access to electrical connections• Navigation<br />
instrument panel • White light fitting / Red • Porthole opening onto coamimg in side window<br />
GALLEY: • HR:1.93 m• Kitchen along the hull• White laminated worktop• S/S sink 2 rectangular<br />
basins - Mixer tap h/c water under pressure • Gas cooker 2 hobs – S/S oven, on mountings - safety<br />
bar • Ice box 170 litre, top opening Refrigeration unit 12 V • Fitted cupboards and closed cubby holes<br />
(Shelf Rubbish bin • cutlery drawer• Cubby hole with S/S beading • Hull porthole• Fixed deck house<br />
side window• Porthole opening onto coamimg in side window • 2 Gas bottle box(es) in the cockpit •<br />
Pressure reducing valve and safety tap<br />
AFT WASHROOM: • HR:1.89 m• Access through saloon and the starboard aft cabin• Separate<br />
shower - h/c water shower mixer tap • marine toilet• Rigid sewage water tank 80L• Wooden handrail<br />
- Mixing tap h/c water• Cupboard and closed cubby holes • Porthole opening<br />
AFT CABINS PORT AND STARBOARD: 2 Symmetrical cabins each • HR:1.89 m • Double bed (2.00<br />
m x 1.53 m x 1.33 m) - Marine mattress • Cupboard - Hanging locker - Closed lockers • Hull porthole<br />
• Porthole opening onto coaming • Cockpit porthole • Opening deck hatch<br />
ENTERTAINMENT: Radio CD MP3 player + 2 speakers in saloon and 2 outside speakers<br />
TV with DVD player - TV antenna<br />
COMMENT: Presented in good order, good saving against a brand new boat.<br />
Delivered summer <strong>2007</strong> and only lightly used. Rented mooring is available.
DISCLAIMER: Boat & Yacht Broker S.L.U – YBM-Yacht Broker Mallorca<br />
In this case we are acting as brokers only. The Vendor is not selling in the course of a business. Whilst every care has been<br />
taken in their preparation, the correctness of these particulars is not guaranteed. The particulars are intended only as a<br />
guide and they do not constitute a term of any contract. A prospective buyer is strongly advised to check the particulars<br />
and where appropriate at his own expense to employ a qualified Marine Surveyor to carry out a survey and / or to have an<br />
engine trial conducted, which if carried out by us shall not imply any liability for such engine on our part.<br />
Note to seller and purchaser: If the boat you are selling or purchasing is registered, please ensure that the registration is<br />
completed after the sale of the boat. If the purchaser wishes to cancel the registration is the duty of the seller to contact<br />
the Registry and inform them that the registration is to be cancelled. If the purchase wishes to continue with the<br />
registration, it is the duty of the purchaser to complete the relevant forms and post off the bill of sale to the Registrar.
