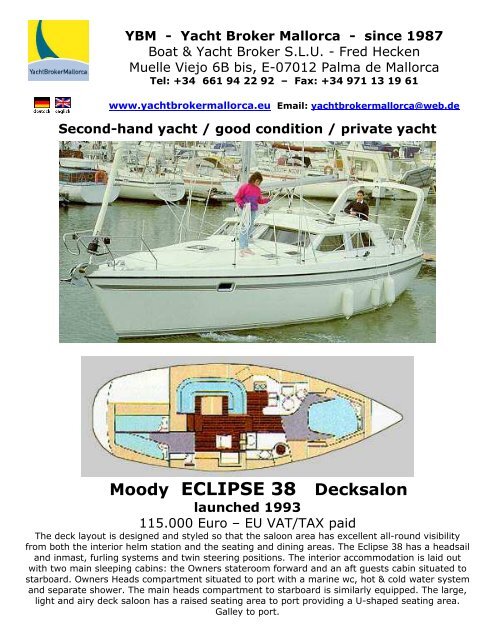

YBM - Yacht Broker Mallorca - since 1987<br />
Boat & Yacht Broker S.L.U. - Fred Hecken<br />
Muelle Viejo 6B bis, E-07012 Palma <strong>de</strong> Mallorca<br />
Tel: +34 661 94 22 92 – Fax: +34 971 13 19 61<br />
www.yachtbrokermallorca.eu Email: yachtbrokermallorca@web.<strong>de</strong><br />
Second-hand yacht / good condition / private yacht<br />
<strong>Moody</strong> <strong>ECLIPSE</strong> <strong>38</strong> Decksalon<br />
launched <strong>1993</strong><br />
115.000 Euro – EU VAT/TAX paid<br />
The <strong>de</strong>ck layout is <strong>de</strong>signed and styled so that the saloon area has excellent all-round visibility<br />
from both the interior helm station and the seating and dining areas. The Eclipse <strong>38</strong> has a headsail<br />
and inmast, furling systems and twin steering positions. The interior accommodation is laid out<br />
with two main sleeping cabins: the Owners stateroom forward and an aft guests cabin situated to<br />
starboard. Owners Heads compartment situated to port with a marine wc, hot & cold water system<br />
and separate shower. The main heads compartment to starboard is similarly equipped. The large,<br />
light and airy <strong>de</strong>ck saloon has a raised seating area to port providing a U-shaped seating area.<br />
Galley to port.
Description: Cruising yacht in good condition – Series yacht with additional fitted extras<br />
Built by: Marine Projects (Plymouth) Ltd, U.K. to Lloyds Specification Certificat<br />
Designer: Bill Dixon Design<br />
Lying: Europe / Spain / near Valencia<br />
LoA 11.43 m 37´6” (incl. pulpit)<br />
LWL 9.82 m 32'2.5"<br />
Beam 3.96 m 13´0”<br />
Draught 1.37 m 4´6” Shoal draught keel, cast iron<br />
Displacement 7.373 kg 16.250 lbs<br />
Ballast 2.950 kg 6.500 lbs Rud<strong>de</strong>r with Skeg<br />
Tankage:<br />
Fuel<br />
Freshwater<br />
Holding<br />
273 liters<br />
250 liters<br />
ca. 100 liters<br />
60 Imp. Gall.<br />
55 Imp. Gall.<br />
Sloop Rig: SELDÈN Aluminum Mast & Boom with Rod kick -S/S standing rigging – Spi-Lift<br />
Equipment & -pole - All control lines leading aft to cockpit - Winches LEWMAR: self tailing<br />
winches - winch handles -<br />
-“in-Mast”-furling Mainsail approx. 27.13 m² (292 sq ft)<br />
- Furling foresail system with Genoa with UV-protection, approx. 45.07 m² (485 sq ft)<br />
- Cruising chute<br />
- Spinnaker<br />
ENGINE: Perkins M60 4-cylin<strong>de</strong>r Diesel 59 HP. engine Hours: 1400 - stainless steel shaft,<br />
with 3-bla<strong>de</strong>d bronze propeller, Dual circuit cooling with sea water filter – Isolated engine<br />
compartment with working light -Fuel Tank: content with fuel level indicator and diesel filter.<br />
Electric operated BOW THRUSTER fitted<br />
ELECTRICAL: 230 V shore power supply - Battery charger – Batteries (service & starter) –<br />
SOLAR PANELS -<br />
WATER & PUMBING: 2x Fresh water tanks, gauge - Holding tank - hot water tank – hot & cold<br />
pressurized water system – H/water by engine heat exchanger - shower at stern – electric &<br />
manual bilge pumps – electric marine toilet<br />
NAUTIC & NAVIGATION: Compass – Log/Speed & Depth meter & wind instrument for<br />
speed/direction – GPS & CHART PLOTTER – AUTOPILOT – VHF radio telephone – RADAR –<br />
International Navigation Lights<br />
VARIOUS & SAFETY: electric Anchor windlass, anchor with chain, stainless steel support<br />
aft for radar dome and antennas – Spray-hood, teak Cockpit table & BIMINI sun-top (sun<br />
awning) – Life-Raft, fire extinguisher – Various spares, tools, domestic equipment - Electric cable,<br />
water hose, connectors, Fen<strong>de</strong>rs/warps etc – brackets for fishing rutes - inflatable dinghy and<br />
outboard engine -<br />
Diesel fired warm air HEATING system –<br />
HULL & DECK, COCKPIT etc.: Scandinavian type Pulpit with passage, push-pit, twin guard wires<br />
– S/S stem head bow fitting with anchor roller – 6 mooring cleats (2 bow, 2 mid & 2 aft) – self<br />
draining anchor locker & gas bottle storage – Teak hand rails on coach roof and additional stainless<br />
steel handrails at cockpit - Teak on cockpit seat and C/pit floor - large cockpit locker – Deck &<br />
engine vent – DECKSALOON with large windows, window wipers. Aft cockpit with WHITLOCK<br />
steering pe<strong>de</strong>stals with integrated single lever engine control – S/S steering wheel – S/S frame –<br />
cockpit upholstery – Integrated bathing platform with S/S folding bathing lad<strong>de</strong>r -
ACCOMMODATION:<br />
2 cabins / 4 berths (+ saloon 1 berth) / 2 heads compartments<br />
– Forward owners cabin with large opening <strong>de</strong>ck hatch, center-double berth, large storage<br />
un<strong>de</strong>r, hanging locker, access to chain Locker,<br />
- en-suit access to forward toilet/shower room, electric marine toilet<br />
-large DECK-Saloon with raised U-shaped settee to port, Storage behind back rest and storage<br />
un<strong>de</strong>r seats -Teak-Saloon-Table with folding leafs and bottle storage – bar and TV cabinet<br />
opposite, INTERIOR HELM STATION with helmsman seat with excellent visibility at stb si<strong>de</strong>,<br />
chart table and electric fuse/switch board - 2x opening <strong>de</strong>ck hatches in saloon - Companionway /<br />
steps in teak, behind access to Engine room<br />
- Galley one step down forward to port si<strong>de</strong> in U-shape, equipped with gas cooker / oven, stainless<br />
steel twin sink with hot/cold pressurized water, electric 12V refrigerated front opening fridge and<br />
cool box<br />
- second / guest toilet/shower (electric marine toilet) opposite.<br />
- aft starboard guest cabin with 2x Single berth or double berth, storage room and<br />
wardrobe, access to engine room<br />
GALLEY equipment: 2-burner Gas-cooker with Grill & Oven in good condition, with Removable<br />
work top - self drained Gas bottle locker for 2 large Bottles - Stainless steel double sink with h/c<br />
press. Water - Large, elec. refrigerated, cooling box and small ice box - Storage facilities for „Pot &<br />
Pan“+ drawer, storage for crockery with Tinted Perspex sliding doors<br />
Entertainment: Radio-Cassette & CD-player & CD-changer, loud speakers at saloon<br />
COMMENT: Present owner bought in <strong>1993</strong> – Yacht in very good condition<br />
Test Reports: Yachting World April 1991 & Motor Boat & Yachting.<br />
<strong>Moody</strong> Eclipse <strong>38</strong> - Introduced: December 1990 Ceased: February 1992 - Boats Built: 24<br />
Disclaimer: YBM – YachtBrokerMallorca acts as broker for the vendor who unless otherwise stated is not selling in the<br />
course of a business. Whilst every care has been taken in the preparation of these particulars the correctness is not<br />
guaranteed and they are inten<strong>de</strong>d as a gui<strong>de</strong> only and do not constitute a part of any contract. A prospective buyer is<br />
strongly advised to check these particulars and where appropriate and at his own expense to employ a qualified marine<br />
surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any<br />
liability on our part. All dimensions, speeds & range given are approximate and should be treated as a gui<strong>de</strong> only. Some<br />
pictures may be from brochures or of a similar boat. Engine hours show are correct at the time of the preparation of the<br />
particulars, but will vary with usage. Please call to confirm availability of specific boats
