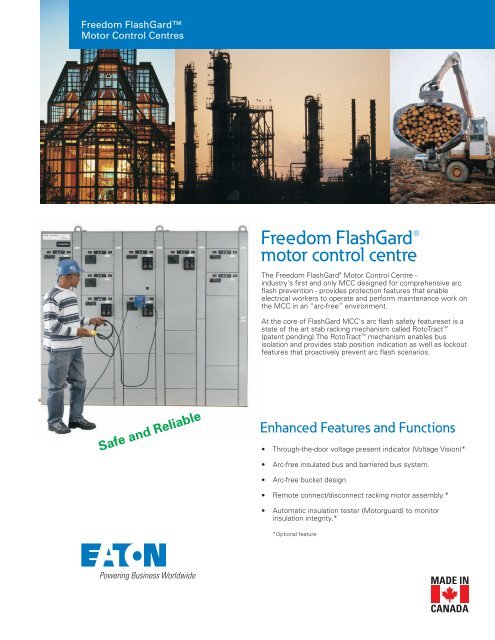

<strong>Freedom</strong> FlashGard<br />
Motor Control Centres<br />
<strong>Freedom</strong> <strong>FlashGard®</strong><br />
<strong>motor</strong> <strong>control</strong> <strong>centre</strong><br />
The <strong>Freedom</strong> FlashGard ® Motor Control Centre -<br />
industry's first and only MCC designed for comprehensive arc<br />
flash prevention - provides protection features that enable<br />
electrical workers to operate and perform maintenance work on<br />
the MCC in an “arc-free” environment.<br />
At the core <strong>of</strong> FlashGard MCC's arc flash safety featureset is a<br />
state <strong>of</strong> the art stab racking mechanism called RotoTract TM<br />
(patent pending).The RotoTract TM mechanism enables bus<br />
isolation and provides stab position indication as well as lockout<br />
features that proactively prevent arc flash scenarios.<br />
Safe and Reliable<br />
Enhanced Features and Functions<br />
• Through-the-door voltage present indicator (Voltage Vision)*<br />
• Arc-free insulated bus and barriered bus system.<br />
• Arc-free bucket design.<br />
• Remote connect/disconnect racking <strong>motor</strong> assembly.*<br />
• Automatic insulation tester (Motorguard) to monitor<br />
insulation integrity.*<br />
*Optional feature
<strong>Freedom</strong> FlashGard<br />
Motor Motor Control Centres<br />
Features and Functions<br />
Prevention: Insulation and<br />
Isolation<br />
Insulated horizontal and<br />
labyrinth vertical bus.<br />
Shutters to isolate the vertical<br />
bus when a unit is removed.<br />
Shutters on the unit to isolate<br />
when the wrapper is removed.<br />
Finger-safe components inside<br />
the units.<br />
Maintaining Unit Door Closed<br />
Disconnect units from vertical<br />
bus with door closed.<br />
Interlock prevents removal <strong>of</strong><br />
unit from vertical bus.<br />
Interlock prevents insertion <strong>of</strong><br />
unit with stabs extended.<br />
A more uniform and secure<br />
connection to the vertical bus.<br />
Two-postion retractable stabs:<br />
Connected<br />
Disconnected<br />
Visual indication that stabs are<br />
disconnected from vertical bus.<br />
Optional through-the-door<br />
voltage test station.<br />
Reduction <strong>of</strong> Time-Available<br />
Fault Current<br />
Arcflash Reduction Maintenance<br />
System.<br />
Applied to breaker feeding MCC<br />
to reduce trip time during an arc<br />
flash.<br />
Can reduce risk category from<br />
CAT3 to CAT0.<br />
Removing Voltages<br />
Dangerous to Life<br />
In “Disconnected” postion, no<br />
voltage present.<br />
Supporting Canadian Industry<br />
Eaton FlashGard TM Motor<br />
Control Centres are manufactured<br />
and assembled in<br />
Canada. They provide<br />
state-<strong>of</strong>-the-art protection to<br />
a wide variety <strong>of</strong> industries.<br />
.<br />
Manufacturing Main<br />
Production<br />
Airdrie, AB<br />
Field Support EESS<br />
Delta, BC<br />
Calgary, AB<br />
Edmonton, AB<br />
Saskatoon, SK<br />
Winnipeg, MN<br />
Ontario: 11<br />
Laval, PQ<br />
Dartmouth, NS<br />
Manufacturing<br />
Satellite Locations<br />
Delta, BC<br />
Calgary, AB<br />
Edmonton, AB<br />
Mississauga, ON<br />
Oshawa, ON<br />
Lachine, PQ<br />
Winnipeg, MB<br />
Dartmouth, NS<br />
Marketing Engineering<br />
Airdrie, AB<br />
Mississauga, ON<br />
Lachine, PQ<br />
Sales / Technical Support<br />
Delta, BC<br />
Edmonton, AB<br />
Calgary, AB<br />
Saskatoon, SK<br />
Regina, SK<br />
Winnipeg, MN<br />
Ontario: 11<br />
Lachine, PQ<br />
Vanier, PQ<br />
Moncton, NB<br />
Dartmouth, NS<br />
St. John’s, NF<br />
© 2009 Eaton Corporation<br />
All Rights Reserved<br />
Printed in Canada<br />
Publication No.: PA5805018K<br />
December 2009<br />
Eaton Corporation<br />
5050 Mainway<br />
Burlington, ON L7L 5Z1<br />
Phone (905) 333-6442<br />
www.eatoncanada.ca<br />
