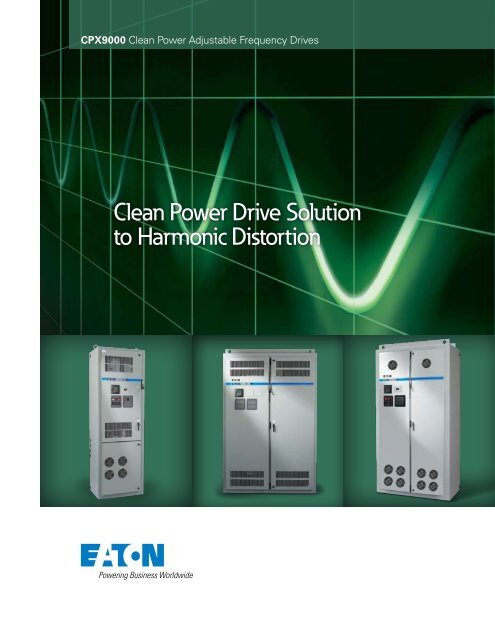

CPX9000 clean power drive - Eaton

4%18-Pulse11%12-Pulse35%6-Pulse6-pulse drives typically havedistortion with steep current rises.12-pulse drives typically produce arough sinusoidal waveform.The CPX9000 clean power drivedramatically reduces harmonicdistortion for a clean waveform.18-pulse drives exceed the IEEEstandard of 5% THD. The chartillustrates differences between6-, 12- and 18-pulse solutions.For sensitive medical and electronicequipment, Eaton’s CPX9000 isunsurpassed.CPX9000 standard features:••Multi-Line, easy-to-useoperator control panel••9000X Drive, windowsbasedprogrammingsoftware••Selectable sensorlessvector••Input fuses for protection••Pre-engineered compactType 1, 12 or 3RenclosuresCommunications Capabilities:••Devicenet••Profibus DP••Ethernet••Modbus-RTU••Lonworks & key HVACprotocols••BACNETeaton corporation CPX9000 3

Eaton’s Electrical Sectoris a global leader in powerdistribution, power quality,control & automation andmonitoring products. Whencombined with Eaton’sfull-scale engineering services,these products providecustomer-driven PowerChainManagement• solutions toserve the power system needsof the data center, industrial,institutional, government,utility, commercial, residential,IT, mission critical and OEMmarkets worldwide.PowerChain Managementsolutions help enterprisesachieve sustainable andcompetitive advantages throughproactive management of thepower system as a strategic,integrated asset throughout itslife cycle, resulting in enhancedsafety, greater reliability andenergy efficiency. For moreinformation, visitwww.eaton.com/electrical.Eaton CorporationElectrical Sector1111 Superior Ave.Cleveland, OH 44114United States877-ETN-CARE (877-386-2273)Eaton.com© 2009 Eaton CorporationAll Rights ReservedPrinted in USAPublication No. BR04007001EDecember 2009PowerChain Management is a registeredtrademark of Eaton Corporation.All other trademarks are property of theirrespective owners.
