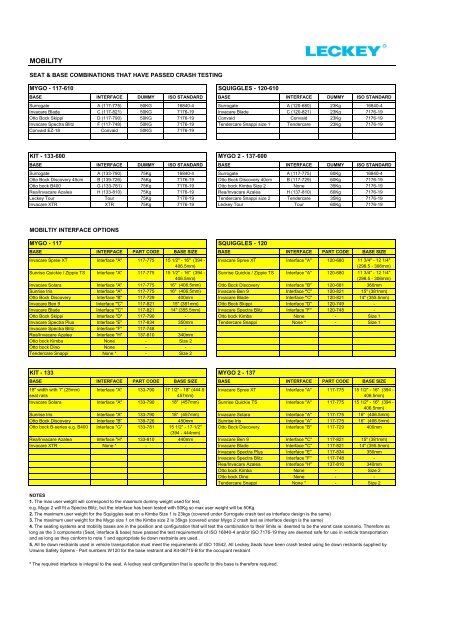

MOBILITYSEAT & BASE COMBINATIONS THAT HAVE PASSED CRASH TESTINGMYGO - 117-610 SQUIGGLES - 120-610BASE INTERFACE DUMMY ISO STANDARD BASE INTERFACE DUMMY ISO STANDARDSurrogate A (117-775) 50KG 16840-4 Surrogate A (120-680) 23Kg 16840-4Invacare Blade C (117-821) 50KG 7176-19 Invacare Blade C (120-821) 23Kg 7176-19Otto Bock Skippi D (117-790) 50KG 7176-19 Convaid Convaid 23Kg 7176-19Invacare Spectra Blitz F (117-748) 50KG 7176-19 Tendercare Snappi size 1 Tendercare 23Kg 7176-19Convaid EZ-18 Convaid 50KG 7176-19KIT - 133-600 MYGO 2 - 137-600BASE INTERFACE DUMMY ISO STANDARD BASE INTERFACE DUMMY ISO STANDARDSurrogate A (133-790) 75Kg 16840-4 Surrogate A (117-775) 60Kg 16840-4Otto Bock Discovery 45cm B (139-726) 75Kg 7176-19 Otto Bock Discovery 40cm B (117-729) 60Kg 7176-19Otto bock B400 G (133-781) 75Kg 7176-19 Otto bock Kimba Size 2 None 35Kg 7176-19Rea/Invacare Azalea H (133-810) 75Kg 7176-19 Rea/Invacare Azalea H (137-810) 60Kg 7176-19<strong>Leckey</strong> Tour Tour 75Kg 7176-19 Tendercare Snappi size 2 Tendercare 35Kg 7176-19Invacare XTR XTR 75Kg 7176-19 <strong>Leckey</strong> Tour Tour 60Kg 7176-19MOBILTIY INTERFACE OPTIONSMYGO - 117 SQUIGGLES - 120BASE INTERFACE PART CODE BASE SIZE BASE INTERFACE PART CODE BASE SIZEInvacare Spree XT Interface "A" 117-775 15 1/2" - 16" (394 -406.5mm)Sunrise Quickie / Zippie TS Interface "A" 117-775 15 1/2" - 16" (394 -406.5mm)Invacare Spree XT Interface "A" 120-680 11 3/4" - 12 1/4"(298.5 - 306mm)Sunrise Quickie / Zippie TS Interface "A" 120-680 11 3/4" - 12 1/4"(298.5 - 306mm)Invacare Solara Interface "A" 117-775 16" (406.5mm) Otto Bock Discovery Interface "B" 120-681 360mmSunrise Iris Interface "A" 117-775 16" (406.5mm) Invacare Ben 9 Interface "C" 120-821 15" (381mm)Otto Bock Discovery Interface "B" 117-729 400mm Invacare Blade Interface "C" 120-821 14" (355.5mm)Invacare Ben 9 Interface "C" 117-821 15" (381mm) Otto Bock Skippi Interface "D" 120-749 -Invacare Blade Interface "C" 117-821 14" (355.5mm) Invacare Spectra Blitz Interface "F" 120-748 -Otto Bock Skippi Interface "D" 117-790 - Otto bock Kimba None - Size 1Invacare Spectra Plus Interface "E" 117-834 350mm Tendercare Snappi None * - Size 1Invacare Spectra Blitz Interface "F" 117-748 -Rea/Invacare Azalea Interface "H" 137-810 340mmOtto bock Kimba None - Size 2Otto bock Dino None - -Tendercare Snappi None * - Size 2KIT - 133BASE INTERFACE PART CODE BASE SIZE BASE INTERFACE PART CODE BASE SIZE18" width with 1" (25mm)<strong>seat</strong> railsInterface "A" 133-790 17 1/2" - 18" (444.5 -457mm)MYGO 2 - 137Invacare Spree XT Interface "A" 117-775 15 1/2" - 16" (394 -406.5mm)Invacare Solara Interface "A" 133-790 18" (457mm) Sunrise Quickie TS Interface "A" 117-775 15 1/2" - 16" (394 -406.5mm)Sunrise Iris Interface "A" 133-790 18" (457mm) Invacare Solara Interface "A" 117-775 16" (406.5mm)Otto Bock Discovery Interface "B" 139-726 450mm Sunrise Iris Interface "A" 117-775 16" (406.5mm)Otto bock B-series e.g. B400 Interface "G" 133-781 15 1/2" - 17 1/2" Otto Bock Discovery Interface "B" 117-729 400mm(394 - 444mm)Rea/Invacare Azalea Interface "H" 133-810 440mm Invacare Ben 9 Interface "C" 117-821 15" (381mm)Invacare XTR None * - - Invacare Blade Interface "C" 117-821 14" (355.5mm)Invacare Spectra Plus Interface "E" 117-834 350mmInvacare Spectra Blitz Interface "F" 117-748 -Rea/Invacare Azalea Interface "H" 137-810 340mmOtto bock Kimba None - Size 2Otto bock Dino None - -Tendercare Snappi None * - Size 2NOTES1. The max user weight will correspond to the maximum dummy weight used for test,e.g. Mygo 2 will fit a Spectra Blitz, but the interface has been tested with 50Kg so max user weight will be 50Kg.2. The maximum user weight for the Squiggles <strong>seat</strong> on a Kimba Size 1 is 23kgs (covered under Surrogate <strong>crash</strong> test as interface design is the same)3. The maximum user weight for the Mygo size 1 on the Kimba size 2 is 35kgs (covered under Mygo 2 <strong>crash</strong> test as interface design is the same)4. The <strong>seat</strong>ing systems <strong>and</strong> mobility <strong>base</strong>s are in the position <strong>and</strong> configuration that will test the combination to their limits ie. deemed to be the worst case scenario. Therefore aslong as the 3 components (Seat, interface & <strong>base</strong>) <strong>have</strong> <strong>passed</strong> the test requirements of ISO 16840-4 <strong>and</strong>/or ISO 7176-19 they are deemed safe for use in vehicle transportation<strong>and</strong> as long as they conform to note 1 <strong>and</strong> appropriate tie down restraints are used..5. All tie down restraints used in vehicle transportation must meet the requirements of ISO 10542. All <strong>Leckey</strong> Seats <strong>have</strong> been <strong>crash</strong> tested using tie down restraints supplied byUnwins Safety Sytems - Part numbers W120 for the <strong>base</strong> restraint <strong>and</strong> Kit-06715-B for the occupant restraint* The required interface is integral to the <strong>seat</strong>. A leckey <strong>seat</strong> configuration that is specific to this <strong>base</strong> is therefore required.
MOBILITYMYGO INTERFACESInterface "A" 117-775 Interface "B" 117-726Interface "C" 117-821 Interface "D" 117-790Interface "E" 117-834 Interface "F" 117-748Interface "H" 137-810
MOBILITYSQUIGGLES INTERFACESInterface "A" 120-680 Interface "B" 120-681Interface "C" 120-821 Interface "D" 120-749Interface "F" 120-748
MOBILITYKIT INTERFACESInterface "A" 133-790 Interface "B" 139-726Interface "G" 133-781 Interface "H" 133-810
