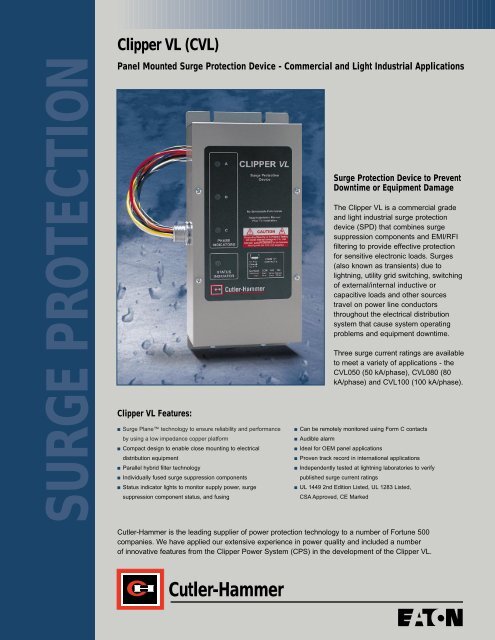

SURGE PROTECTION<br />
<strong>Clipper</strong> <strong>VL</strong> (C<strong>VL</strong>)<br />
Panel Mounted Surge Protection Device - Commercial and Light Industrial Applications<br />
<strong>Clipper</strong> <strong>VL</strong> Features:<br />
■ Surge Plane technology to ensure reliability and performance<br />
by using a low impedance copper platform<br />
■ Compact design to enable close mounting to electrical<br />
distribution equipment<br />
■ Parallel hybrid filter technology<br />
■ Individually fused surge suppression components<br />
■ Status indicator lights to monitor supply power, surge<br />
suppression component status, and fusing<br />
Cutler-Hammer<br />
Surge Protection Device to Prevent<br />
Downtime or Equipment Damage<br />
The <strong>Clipper</strong> <strong>VL</strong> is a commercial grade<br />
and light industrial surge protection<br />
device (SPD) that combines surge<br />
suppression components and EMI/RFI<br />
filtering to provide effective protection<br />
for sensitive electronic loads. Surges<br />
(also known as transients) due to<br />
lightning, utility grid switching, switching<br />
of external/internal inductive or<br />
capacitive loads and other sources<br />
travel on power line conductors<br />
throughout the electrical distribution<br />
system that cause system operating<br />
problems and equipment downtime.<br />
Three surge current ratings are available<br />
to meet a variety of applications - the<br />
C<strong>VL</strong>050 (50 kA/phase), C<strong>VL</strong>080 (80<br />
kA/phase) and C<strong>VL</strong>100 (100 kA/phase).<br />
■ Can be remotely monitored using Form C contacts<br />
■ Audible alarm<br />
■ Ideal for OEM panel applications<br />
■ Proven track record in international applications<br />
■ Independently tested at lightning laboratories to verify<br />
published surge current ratings<br />
■ UL 1449 2nd Edition Listed, UL 1283 Listed,<br />
CSA Approved, CE Marked<br />
Cutler-Hammer is the leading supplier of power protection technology to a number of Fortune 500<br />
companies. We have applied our extensive experience in power quality and included a number<br />
of innovative features from the <strong>Clipper</strong> Power System (CPS) in the development of the <strong>Clipper</strong> <strong>VL</strong>.
<strong>Clipper</strong> <strong>VL</strong><br />
Specifications:<br />
C<strong>VL</strong> C<strong>VL</strong>50 C<strong>VL</strong>80 C<strong>VL</strong>100<br />
Surge Current Per Phase 50 kA 80 kA 100 kA<br />
Surge Current Per Mode 25 kA 40 kA 50 kA<br />
Let Through Voltage Rating †<br />
IEEE Cat C3 Combination Wave<br />
(20 kV, 10 kA)<br />
655 V 655 V 655 V<br />
IEEE Cat C1 Combination Wave<br />
(6 kV, 3 kA)<br />
440 V 440 V 440 V<br />
IEEE Cat B3 Ringwave<br />
(6 kV, 500 A, 100 kHz)<br />
UL 1449 2nd Edition (6kV, 500 Amp)<br />
380 V 380 V 380 V<br />
(L-N mode: 120/208 V)<br />
Filter Attenuation<br />
500 V 500 V 500 V<br />
(MIL-STD-220A@100kHz)<br />
Multiple Surge Withstand Capabilities<br />
0-40 dB 0-40 dB 0-40 dB<br />
(IEEE C3 Wave 20 kV, 10 kA) >1500 >1500 >1500<br />
Circuit Construction<br />
UL 1449 2nd edition, UL 1283 Listed,<br />
SurgePlane SurgePlane SurgePlane<br />
CSA Approved, CE Marked Yes Yes Yes<br />
Enclosure<br />
NEMA 1 Standard Standard Standard<br />
NEMA 3R Optional Optional Optional<br />
Warranty 10 Years 10 Years 10 Years<br />
† Contact Cutler-Hammer for let through voltage ratings for other system voltages.<br />
All C<strong>VL</strong>'s have been independently tested to verify all suppressor components can survive<br />
published surge current ratings. Test Documents are available upon request.<br />
<strong>Clipper</strong> <strong>VL</strong> Ordering Guidelines:<br />
Catalog # C<strong>VL</strong> _ _ _ CH _ _ _ _ BD _ _ _<br />
surge rating<br />
050 - 50kA/phase<br />
080 - 80kA/phase<br />
100 - 100kA/phase<br />
voltage code<br />
see table below<br />
enclosure<br />
RSX - standard retrofit<br />
R3R - outdoor<br />
Nominal Voltages Voltage Code<br />
120/208 230/400 277/480 347/600<br />
(use these codes to complete the model number) 240 V 400 V* 480 V 600V<br />
120/240 Single Split Phase (3W plus G) 240S<br />
Three Phase Wye (4W plus G) 208Y 400Y 480Y 600Y<br />
Three Phase Delta (3W plus G) 240D 400D 480D 600D<br />
Contact factory for single pole (2W plus G) or for other configurations<br />
Note: Not suitable for resistive or ungrounded wire systems (refer to the <strong>Clipper</strong> Power System<br />
(CPS) for these applications).<br />
* Valid for 220/380 and 240/415 per IEC standards.<br />
Cutler-Hammer<br />
Pittsburgh, PA<br />
www.cutlerhammer.eaton.com<br />
1-800-525-2000<br />
PA.37B.03A.S.E.<br />
September 1999<br />
Printed in <strong>Canada</strong> / iM<br />
Physical Specifications<br />
<strong>Clipper</strong> <strong>VL</strong><br />
Temperature: -40°C to 60°C<br />
Altitude:
