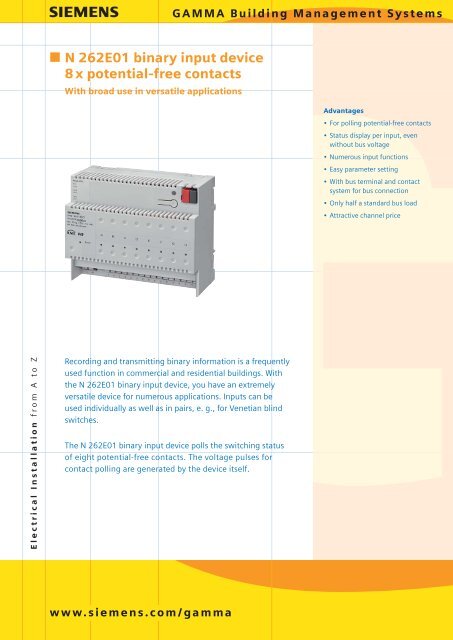

GAMMA Building Management SystemsN 262E01 binary input device8 x potential-free contactsWith broad use in versatile applicationsAdvantages• For polling potential-free contacts• Status display per input, evenwithout bus voltage• Numerous input functions• Easy parameter setting• With bus terminal and contactsystem for bus connection• Only half a standard bus load• Attractive channel priceElectrical Installation from A to ZRecording and transmitting binary information is a frequentlyused function in commercial and residential buildings. Withthe N 262E01 binary input device, you have an extremelyversatile device for numerous applications. Inputs can beused individually as well as in pairs, e. g., for Venetian blindswitches.The N 262E01 binary input device polls the switching statusof eight potential-free contacts. The voltage pulses forcontact polling are generated by the device itself.www.siemens.com/gamma

GAMMA Building Management SystemsApplicationsBinary input device for:• Monitoring installations• Reporting switching status• Recording and transmitting states and actuations of switches and pushbuttons• Pulse counting with / without threshold checkN 262E01 binary input device, 8 x potential-free contact,with 8 inputs for potential-free contacts, with a length of unshielded connecting cable per input ofmax. 100 m, with an integrated power supply for AC 230 V to supply the electronics, with 1 green LEDfor displaying the 230 V operating voltage, with 1 red LED per binary input for status display, witha function to be selected and assigned per input:• Switching status / binary value transmission• Switching, edge-triggered• Switching, short / long operation• 1-button dimming• 1-button solar protection control• 1-button group control (sequence control)• 1-bit scene control• 8-bit scene control• 8-bit value, edge-triggeredrespectively with a function to be assigned to a pair of inputs:• 2-button dimming with stop telegram• 2-button solar protection control• 8-bit value, short / long operation• 16-bit floating point value, edge-triggered• 16-bit floating point value, short / long operation• 8-bit pulse counting without threshold check• 8-bit pulse counting with threshold check• 16-bit pulse counting without threshold check• 16-bit pulse counting with threshold check• 32-bit pulse counting without threshold check• 32-bit pulse counting with threshold checkwith selectable blocking / releasing of each input by a blocking object, with sending of the input objectsafter a change of status, with selectable cyclical sending of the input objects, with integrated bus couplingunit with only half a standard bus load, with connection to the bus line either via the bus terminal or viathe contact system to the data rail, as device in N-system dimensions with snap-on mounting on a DIN railEN 60715-TH35-7.5, width 6 MU (1 Module Unit = 18 mm).All product designations may be trademarks or productnames of Siemens AG or supplier companies whose useby third parties for their own purposes could violatethe rights of the owners.development of the products. An obligation to providethe respective characteristics shall only exist if expresslyagreed in the terms of contract.Ordering DataProduct Order No. Packing units (items)N 262E01 binary input device,5WG1 262-1EB01 18 x potential-free contactsFor technical details, see the Internet.The information provided in this brochure contains merelygeneral descriptions or characteristics of performancewhich in case of actual use do not always apply asdescribed or which may change as a result of furtherSiemens AGAutomation and DrivesElectrical Installation TechnologyP.O. Box 10 09 5393009 REGENSBURGGERMANY © Siemens AG 2006Subject to change without prior noticewww.siemens.com/gammaE20001-A6000-P430-X-7600
