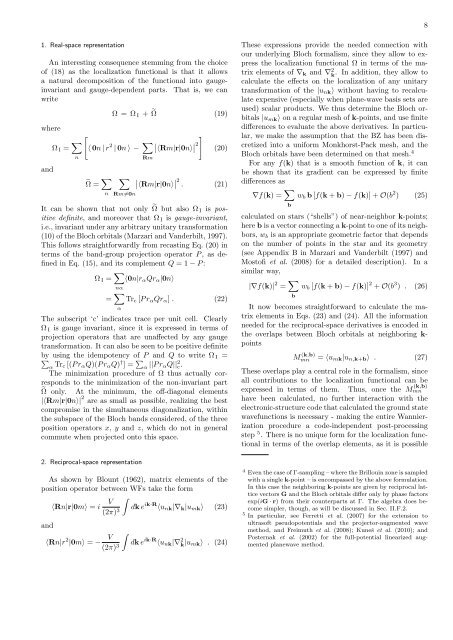

8<br />
1. Real-space representation<br />
An interesting consequence stemming from the choice<br />
of (18) as the localization functional is that it allows<br />
a natural decomposition of the functional into gaugeinvariant<br />
<strong>and</strong> gauge-dependent parts. That is, we can<br />
write<br />
where<br />
<strong>and</strong><br />
Ω I = ∑ n<br />
[<br />
Ω = Ω I + ˜Ω (19)<br />
⟨ 0n | r 2 | 0n ⟩ − ∑ Rm<br />
˜Ω = ∑ n<br />
∑<br />
Rm≠0n<br />
∣<br />
∣⟨Rm|r|0n⟩ ∣ ]<br />
2<br />
(20)<br />
∣<br />
∣⟨Rm|r|0n⟩ ∣ ∣ 2 . (21)<br />
It can be shown that not only ˜Ω but also Ω I is positive<br />
definite, <strong>and</strong> moreover that Ω I is gauge-invariant,<br />
i.e., invariant under any arbitrary unitary transformation<br />
(10) of the Bloch orbitals (Marzari <strong>and</strong> V<strong>and</strong>erbilt, 1997).<br />
This follows straightforwardly from recasting Eq. (20) in<br />
terms of the b<strong>and</strong>-group projection operator P , as defined<br />
in Eq. (15), <strong>and</strong> its complement Q = 1 − P :<br />
Ω I = ∑ ⟨0n|r α Qr α |0n⟩<br />
nα<br />
= ∑ α<br />
Tr c [P r α Qr α ] . (22)<br />
The subscript ‘c’ indicates trace per unit cell. Clearly<br />
Ω I is gauge invariant, since it is expressed in terms of<br />
projection operators that are unaffected by any gauge<br />
transformation. It can also be seen to be positive definite<br />
by<br />
∑<br />
using the idempotency of P <strong>and</strong> Q to write Ω I =<br />
α Tr c [(P r α Q)(P r α Q) † ] = ∑ α ||P r αQ|| 2 c.<br />
The minimization procedure of Ω thus actually corresponds<br />
to the minimization of the non-invariant part<br />
˜Ω only. At the minimum, the off-diagonal elements<br />
|⟨Rm|r|0n⟩| 2 are as small as possible, realizing the best<br />
compromise in the simultaneous diagonalization, within<br />
the subspace of the Bloch b<strong>and</strong>s considered, of the three<br />
position operators x, y <strong>and</strong> z, which do not in general<br />
commute when projected onto this space.<br />
2. Reciprocal-space representation<br />
As shown by Blount (1962), matrix elements of the<br />
position operator between WFs take the form<br />
∫<br />
V<br />
⟨Rn|r|0m⟩ = i<br />
(2π) 3 dk e ik·R ⟨u nk |∇ k |u mk ⟩ (23)<br />
<strong>and</strong><br />
⟨Rn|r 2 |0m⟩ = −<br />
V ∫<br />
(2π) 3 dk e ik·R ⟨u nk |∇ 2 k|u mk ⟩ . (24)<br />
These expressions provide the needed connection with<br />
our underlying Bloch formalism, since they allow to express<br />
the localization functional Ω in terms of the matrix<br />
elements of ∇ k <strong>and</strong> ∇ 2 k<br />
. In addition, they allow to<br />
calculate the effects on the localization of any unitary<br />
transformation of the |u nk ⟩ without having to recalculate<br />
expensive (especially when plane-wave basis sets are<br />
used) scalar products. We thus determine the Bloch orbitals<br />
|u mk ⟩ on a regular mesh of k-points, <strong>and</strong> use finite<br />
differences to evaluate the above derivatives. In particular,<br />
we make the assumption that the BZ has been discretized<br />
into a uniform Monkhorst-Pack mesh, <strong>and</strong> the<br />
Bloch orbitals have been determined on that mesh. 4<br />
For any f(k) that is a smooth function of k, it can<br />
be shown that its gradient can be expressed by finite<br />
differences as<br />
∇f(k) = ∑ b<br />
w b b [f(k + b) − f(k)] + O(b 2 ) (25)<br />
calculated on stars (“shells”) of near-neighbor k-points;<br />
here b is a vector connecting a k-point to one of its neighbors,<br />
w b is an appropriate geometric factor that depends<br />
on the number of points in the star <strong>and</strong> its geometry<br />
(see Appendix B in Marzari <strong>and</strong> V<strong>and</strong>erbilt (1997) <strong>and</strong><br />
Mostofi et al. (2008) for a detailed description). In a<br />
similar way,<br />
|∇f(k)| 2 = ∑ b<br />
w b [f(k + b) − f(k)] 2 + O(b 3 ) . (26)<br />
It now becomes straightforward to calculate the matrix<br />
elements in Eqs. (23) <strong>and</strong> (24). All the information<br />
needed for the reciprocal-space derivatives is encoded in<br />
the overlaps between Bloch orbitals at neighboring k-<br />
points<br />
M (k,b)<br />
mn = ⟨u mk |u n,k+b ⟩ . (27)<br />
These overlaps play a central role in the formalism, since<br />
all contributions to the localization functional can be<br />
expressed in terms of them. Thus, once the M mn<br />
(k,b)<br />
have been calculated, no further interaction with the<br />
electronic-structure code that calculated the ground state<br />
wave<strong>functions</strong> is necessary - making the entire <strong>Wannier</strong>ization<br />
procedure a code-independent post-processing<br />
step 5 . There is no unique form for the localization functional<br />
in terms of the overlap elements, as it is possible<br />
4 Even the case of Γ-sampling – where the Brillouin zone is sampled<br />
with a single k-point – is encompassed by the above formulation.<br />
In this case the neighboring k-points are given by reciprocal lattice<br />
vectors G <strong>and</strong> the Bloch orbitals differ only by phase factors<br />
exp(iG · r) from their counterparts at Γ. The algebra does become<br />
simpler, though, as will be discussed in Sec. II.F.2.<br />
5 In particular, see Ferretti et al. (2007) for the extension to<br />
ultrasoft pseudopotentials <strong>and</strong> the projector-augmented wave<br />
method, <strong>and</strong> Freimuth et al. (2008); Kuneš et al. (2010); <strong>and</strong><br />
Posternak et al. (2002) for the full-potential linearized augmented<br />
planewave method.
