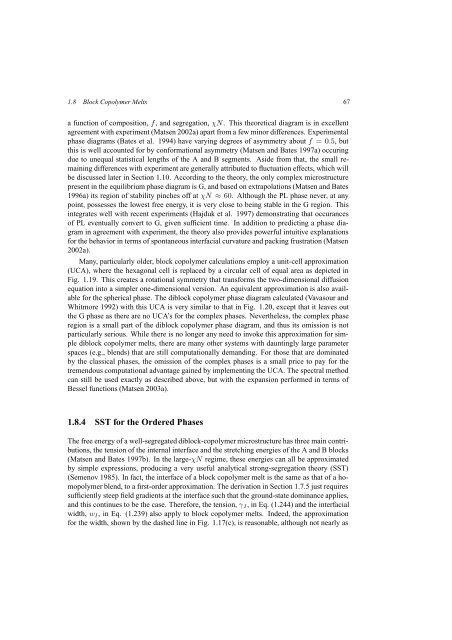

1.8 Block Copolymer Melts 67<br />
a function of composition, f, <strong>and</strong> segregation, χN. This theoretical diagram is in excellent<br />
agreement with experiment (<strong>Matsen</strong> 2002a) apart from a few minor differences. Experimental<br />
phase diagrams (Bates et al. 1994) have varying degrees of asymmetry about f =0.5, but<br />
this is well accounted for <strong>by</strong> conformational asymmetry (<strong>Matsen</strong> <strong>and</strong> Bates 1997a) occuring<br />
due to unequal statistical lengths of the A <strong>and</strong> B segments. Aside from that, the small remaining<br />
differences with experiment are generally attributed to fluctuation effects, which will<br />
be discussed later in Section 1.10. According to the theory, the only complex microstructure<br />
present in the equilibrium phase diagram is G, <strong>and</strong> based on extrapolations (<strong>Matsen</strong> <strong>and</strong> Bates<br />
1996a) its region of stability pinches off at χN ≈ 60. Although the PL phase never, at any<br />
point, possesses the lowest free energy, it is very close to being stable in the G region. This<br />
integrates well with recent experiments (Hajduk et al. 1997) demonstrating that occurances<br />
of PL eventually convert to G, given sufficient time. In addition to predicting a phase diagram<br />
in agreement with experiment, the theory also provides powerful intuitive explanations<br />
for the behavior in terms of spontaneous interfacial curvature <strong>and</strong> packing frustration (<strong>Matsen</strong><br />
2002a).<br />
Many, particularly older, block copolymer calculations employ a unit-cell approximation<br />
(UCA), where the hexagonal cell is replaced <strong>by</strong> a circular cell of equal area as depicted in<br />
Fig. 1.19. This creates a rotational symmetry that transforms the two-dimensional diffusion<br />
equation into a simpler one-dimensional version. An equivalent approximation is also available<br />
for the spherical phase. The diblock copolymer phase diagram calculated (Vavasour <strong>and</strong><br />
Whitmore 1992) with this UCA is very similar to that in Fig. 1.20, except that it leaves out<br />
the G phase as there are no UCA’s for the complex phases. Nevertheless, the complex phase<br />
region is a small part of the diblock copolymer phase diagram, <strong>and</strong> thus its omission is not<br />
particularly serious. While there is no longer any need to invoke this approximation for simple<br />
diblock copolymer melts, there are many other systems with dauntingly large parameter<br />
spaces (e.g., blends) that are still computationally dem<strong>and</strong>ing. For those that are dominated<br />
<strong>by</strong> the classical phases, the omission of the complex phases is a small price to pay for the<br />
tremendous computational advantage gained <strong>by</strong> implementing the UCA. The spectral method<br />
can still be used exactly as described above, but with the expansion performed in terms of<br />
Bessel functions (<strong>Matsen</strong> 2003a).<br />
1.8.4 SST for the Ordered Phases<br />
The free energy of a well-segregated diblock-copolymer microstructure has three main contributions,<br />
the tension of the internal interface <strong>and</strong> the stretching energies of the A <strong>and</strong> B blocks<br />
(<strong>Matsen</strong> <strong>and</strong> Bates 1997b). In the large-χN regime, these energies can all be approximated<br />
<strong>by</strong> simple expressions, producing a very useful analytical strong-segregation theory (SST)<br />
(Semenov 1985). In fact, the interface of a block copolymer melt is the same as that of a homopolymer<br />
blend, to a first-order approximation. The derivation in Section 1.7.5 just requires<br />
sufficiently steep field gradients at the interface such that the ground-state dominance applies,<br />
<strong>and</strong> this continues to be the case. Therefore, the tension, γ I , in Eq. (1.244) <strong>and</strong> the interfacial<br />
width, w I , in Eq. (1.239) also apply to block copolymer melts. Indeed, the approximation<br />
for the width, shown <strong>by</strong> the dashed line in Fig. 1.17(c), is reasonable, although not nearly as
