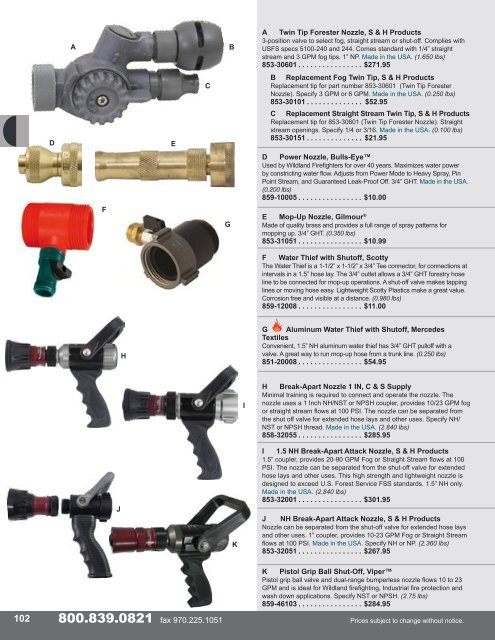

2019 Supply Cache Master Catalog

You also want an ePaper? Increase the reach of your titles

YUMPU automatically turns print PDFs into web optimized ePapers that Google loves.

D<br />

A<br />

F<br />

E<br />

C<br />

G<br />

B<br />

A Twin Tip Forester Nozzle, S & H Products<br />

3-position valve to select fog, straight stream or shut-off. Complies with<br />

USFS specs 5100-240 and 244. Comes standard with 1/4” straight<br />

stream and 3 GPM fog tips. 1” NP. Made in the USA. (1.650 lbs)<br />

853-30601. ................$271.95<br />

B Replacement Fog Twin Tip, S & H Products<br />

Replacement tip for part number 853-30601 (Twin Tip Forester<br />

Nozzle). Specify 3 GPM or 6 GPM. Made in the USA. (0.250 lbs)<br />

853-30101. .............. $52.95<br />

C Replacement Straight Stream Twin Tip, S & H Products<br />

Replacement tip for 853-30601 (Twin Tip Forester Nozzle). Straight<br />

stream openings. Specify 1/4 or 3/16. Made in the USA. (0.100 lbs)<br />

853-30151. .............. $21.95<br />

D Power Nozzle, Bulls-Eye<br />

Used by Wildland Firefighters for over 40 years. Maximizes water power<br />

by constricting water flow. Adjusts from Power Mode to Heavy Spray, Pin<br />

Point Stream, and Guaranteed Leak-Proof Off. 3/4” GHT. Made in the USA.<br />

(0.200 lbs)<br />

859-10005. ................$10.00<br />

E Mop-Up Nozzle, Gilmour ®<br />

Made of quality brass and provides a full range of spray patterns for<br />

mopping up. 3/4” GHT. (0.350 lbs)<br />

853-31051. ................$10.99<br />

F Water Thief with Shutoff, Scotty<br />

The Water Thief is a 1-1/2” x 1-1/2” x 3/4” Tee connector, for connections at<br />

intervals in a 1.5” hose lay. The 3/4” outlet allows a 3/4” GHT forestry hose<br />

line to be connected for mop-up operations. A shut-off valve makes tapping<br />

lines or moving hose easy. Lightweight Scotty Plastics make a great value.<br />

Corrosion free and visible at a distance. (0.980 lbs)<br />

859-12008. ................$11.00<br />

H<br />

G Aluminum Water Thief with Shutoff, Mercedes<br />

Textiles<br />

Convenient, 1.5” NH aluminum water thief has 3/4” GHT pulloff with a<br />

valve. A great way to run mop-up hose from a trunk line. (0.250 lbs)<br />

851-20008. ................$54.95<br />

I<br />

H Break-Apart Nozzle 1 IN, C & S <strong>Supply</strong><br />

Minimal training is required to connect and operate the nozzle. The<br />

nozzle uses a 1 Inch NH/NST or NPSH coupler, provides 10/23 GPM fog<br />

or straight stream flows at 100 PSI. The nozzle can be separated from<br />

the shut off valve for extended hose lays and other uses. Specify NH/<br />

NST or NPSH thread. Made in the USA. (2.840 lbs)<br />

858-32055. ................$285.95<br />

J<br />

K<br />

I 1.5 NH Break-Apart Attack Nozzle, S & H Products<br />

1.5” coupler, provides 20-90 GPM Fog or Straight Stream flows at 100<br />

PSI. The nozzle can be separated from the shut-off valve for extended<br />

hose lays and other uses. This high strength and lightweight nozzle is<br />

designed to exceed U.S. Forest Service FSS standards. 1.5” NH only.<br />

Made in the USA. (2.840 lbs)<br />

853-32001. ................$301.95<br />

J NH Break-Apart Attack Nozzle, S & H Products<br />

Nozzle can be separated from the shut-off valve for extended hose lays<br />

and other uses. 1” coupler, provides 10-23 GPM Fog or Straight Stream<br />

flows at 100 PSI. Made in the USA. Specify NH or NP. (2.360 lbs)<br />

853-32051. ................$267.95<br />

K Pistol Grip Ball Shut-Off, Viper<br />

Pistol grip ball valve and dual-range bumperless nozzle flows 10 to 23<br />

GPM and is ideal for Wildland firefighting, Industrial fire protection and<br />

wash down applications. Specify NST or NPSH. (2.75 lbs)<br />

859-46103. ................$284.95<br />

102 800.839.0821 fax 970.225.1051 Prices subject to change without notice.
