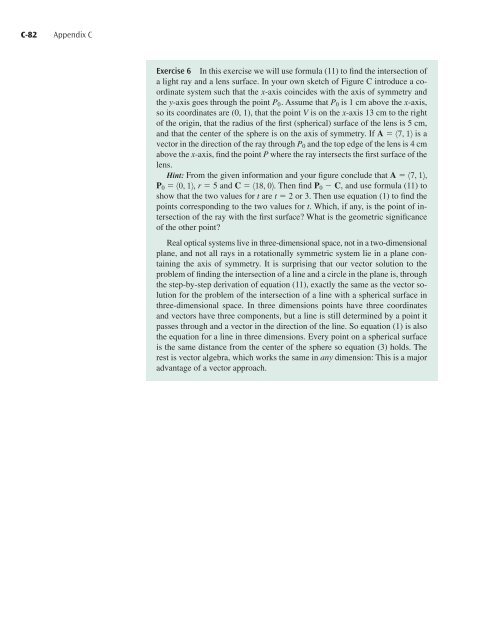

C-82 Appendix C<br />
Exercise 6 In this exercise we will use formula (11) to find the intersection of<br />
a light ray and a lens surface. In your own sketch of Figure C introduce a coordinate<br />
system such that the x-axis coincides with the axis of symmetry and<br />
the y-axis goes through the point P 0 . Assume that P 0 is 1 cm above the x-axis,<br />
so its coordinates are (0, 1), that the point V is on the x-axis 13 cm to the right<br />
of the origin, that the radius of the first (spherical) surface of the lens is 5 cm,<br />
and that the center of the sphere is on the axis of symmetry. If A 87, 19 is a<br />
vector in the direction of the ray through P 0 and the top edge of the lens is 4 cm<br />
above the x-axis, find the point P where the ray intersects the first surface of the<br />
lens.<br />
Hint: From the given information and your figure conclude that A 87, 19,<br />
P 0 80, 19, r 5 and C 818, 09. Then find P 0 C, and use formula (11) to<br />
show that the two values for t are t 2 or 3. Then use equation (1) to find the<br />
points corresponding to the two values for t. Which, if any, is the point of intersection<br />
of the ray with the first surface? What is the geometric significance<br />
of the other point?<br />
Real optical systems live in three-dimensional space, not in a two-dimensional<br />
plane, and not all rays in a rotationally symmetric system lie in a plane containing<br />
the axis of symmetry. It is surprising that our vector solution to the<br />
problem of finding the intersection of a line and a circle in the plane is, through<br />
the step-by-step derivation of equation (11), exactly the same as the vector solution<br />
for the problem of the intersection of a line with a spherical surface in<br />
three-dimensional space. In three dimensions points have three coordinates<br />
and vectors have three components, but a line is still determined by a point it<br />
passes through and a vector in the direction of the line. So equation (1) is also<br />
the equation for a line in three dimensions. Every point on a spherical surface<br />
is the same distance from the center of the sphere so equation (3) holds. The<br />
rest is vector algebra, which works the same in any dimension: This is a major<br />
advantage of a vector approach.
