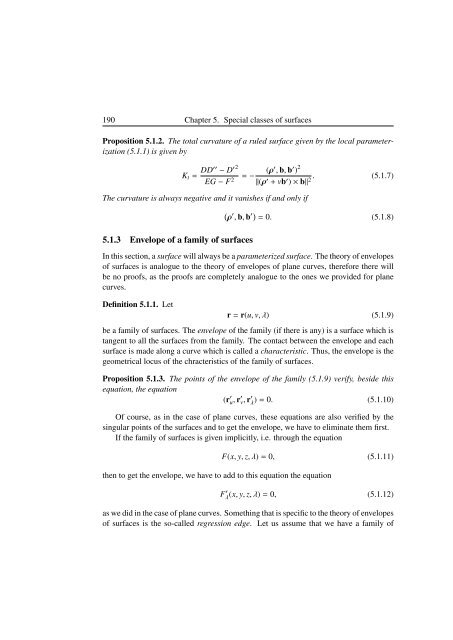

190 Chapter 5. Special classes <strong>of</strong> surfaces<br />
Propositi<strong>on</strong> 5.1.2. The total curvature <strong>of</strong> a <strong>ru</strong>led surface given by <strong>the</strong> local parameterizati<strong>on</strong><br />
(5.1.1) is given by<br />
Kt = DD′′ − D ′2<br />
EG − F<br />
2 = −<br />
(ρ ′ , b, b ′ ) 2<br />
The curvature is always negative and it vanishes if and <strong>on</strong>ly if<br />
5.1.3 Envelope <strong>of</strong> a family <strong>of</strong> surfaces<br />
�(ρ ′ + vb ′ . (5.1.7)<br />
) × b�2 � ρ ′ , b, b ′ � = 0. (5.1.8)<br />
In this secti<strong>on</strong>, a surface will always be a parameterized surface. The <strong>the</strong>ory <strong>of</strong> envelopes<br />
<strong>of</strong> surfaces is analogue to <strong>the</strong> <strong>the</strong>ory <strong>of</strong> envelopes <strong>of</strong> plane curves, <strong>the</strong>refore <strong>the</strong>re will<br />
be no pro<strong>of</strong>s, as <strong>the</strong> pro<strong>of</strong>s are completely analogue to <strong>the</strong> <strong>on</strong>es we provided for plane<br />
curves.<br />
Definiti<strong>on</strong> 5.1.1. Let<br />
r = r(u, v, λ) (5.1.9)<br />
be a family <strong>of</strong> surfaces. The envelope <strong>of</strong> <strong>the</strong> family (if <strong>the</strong>re is any) is a surface which is<br />
tangent to all <strong>the</strong> surfaces from <strong>the</strong> family. The c<strong>on</strong>tact between <strong>the</strong> envelope and each<br />
surface is made al<strong>on</strong>g a curve which is called a characteristic. Thus, <strong>the</strong> envelope is <strong>the</strong><br />
geometrical locus <strong>of</strong> <strong>the</strong> chracteristics <strong>of</strong> <strong>the</strong> family <strong>of</strong> surfaces.<br />
Propositi<strong>on</strong> 5.1.3. The points <strong>of</strong> <strong>the</strong> envelope <strong>of</strong> <strong>the</strong> family (5.1.9) verify, beside this<br />
equati<strong>on</strong>, <strong>the</strong> equati<strong>on</strong><br />
(r ′ u, r ′ v, r ′ λ ) = 0. (5.1.10)<br />
Of course, as in <strong>the</strong> case <strong>of</strong> plane curves, <strong>the</strong>se equati<strong>on</strong>s are also verified by <strong>the</strong><br />
singular points <strong>of</strong> <strong>the</strong> surfaces and to get <strong>the</strong> envelope, we have to eliminate <strong>the</strong>m first.<br />
If <strong>the</strong> family <strong>of</strong> surfaces is given implicitly, i.e. through <strong>the</strong> equati<strong>on</strong><br />
F(x, y, z, λ) = 0, (5.1.11)<br />
<strong>the</strong>n to get <strong>the</strong> envelope, we have to add to this equati<strong>on</strong> <strong>the</strong> equati<strong>on</strong><br />
F ′ λ (x, y, z, λ) = 0, (5.1.12)<br />
as we did in <strong>the</strong> case <strong>of</strong> plane curves. Something that is specific to <strong>the</strong> <strong>the</strong>ory <strong>of</strong> envelopes<br />
<strong>of</strong> surfaces is <strong>the</strong> so-called regressi<strong>on</strong> edge. Let us assume that we have a family <strong>of</strong>
