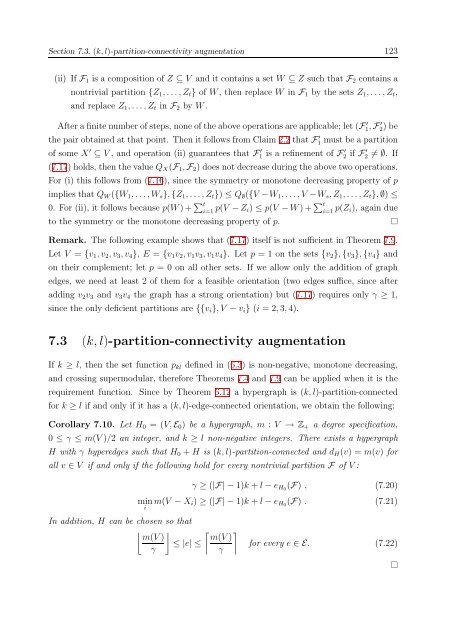

Section 7.3. (k, l)-partition-<strong>connectivity</strong> augmentation 123<br />
(ii) If F1 is a composition <strong>of</strong> Z ⊆ V <strong>and</strong> it contains a set W ⊆ Z such that F2 contains a<br />
nontrivial partition {Z1, . . . , Zt} <strong>of</strong> W , then replace W in F1 by the sets Z1, . . . , Zt,<br />
<strong>and</strong> replace Z1, . . . , Zt in F2 by W .<br />
After a finite number <strong>of</strong> steps, none <strong>of</strong> the above operations are applicable; let (F ′ 1, F ′ 2) be<br />
the pair obtained at that point. Then it follows from Claim 2.2 that F ′ 1 must be a partition<br />
<strong>of</strong> some X ′ ⊆ V , <strong>and</strong> operation (ii) guarantees that F ′ 1 is a refinement <strong>of</strong> F ′ 2 if F ′ 2 = ∅. If<br />
(7.17) holds, then the value QX(F1, F2) does not decrease during the above two operations.<br />
For (i) this follows from (7.16), since the symmetry or monotone decreasing property <strong>of</strong> p<br />
implies that QW ({W1, . . . , Ws}, {Z1, . . . , Zt}) ≤ Q∅({V −W1, . . . , V −Ws, Z1, . . . , Zt}, ∅) ≤<br />
0. For (ii), it follows because p(W ) + t i=1 p(V − Zi) ≤ p(V − W ) + t i=1 p(Zi), again due<br />
to the symmetry or the monotone decreasing property <strong>of</strong> p.<br />
Remark. The following example shows that (7.17) itself is not sufficient in Theorem 7.9.<br />
Let V = {v1, v2, v3, v4}, E = {v1v2, v1v3, v1v4}. Let p = 1 on the sets {v2}, {v3}, {v4} <strong>and</strong><br />
on their complement; let p = 0 on all other sets. If we allow only the addition <strong>of</strong> graph<br />
edges, we need at least 2 <strong>of</strong> them for a feasible orientation (two edges suffice, since after<br />
adding v2v3 <strong>and</strong> v3v4 the graph has a strong orientation) but (7.17) requires only γ ≥ 1,<br />
since the only deficient partitions are {{vi}, V − vi} (i = 2, 3, 4).<br />
7.3 (k, l)-partition-<strong>connectivity</strong> augmentation<br />
If k ≥ l, then the set function pkl defined in (6.3) is non-negative, monotone decreasing,<br />
<strong>and</strong> crossing supermodular, therefore Theorems 7.4 <strong>and</strong> 7.9 can be applied when it is the<br />
requirement function. Since by Theorem 6.12 a hypergraph is (k, l)-partition-connected<br />
for k ≥ l if <strong>and</strong> only if it has a (k, l)-edge-connected orientation, we obtain the following:<br />
Corollary 7.10. Let H0 = (V, E0) be a hypergraph, m : V → Z+ a degree specification,<br />
0 ≤ γ ≤ m(V )/2 an integer, <strong>and</strong> k ≥ l non-negative integers. There exists a hypergraph<br />
H with γ hyperedges such that H0 + H is (k, l)-partition-connected <strong>and</strong> dH(v) = m(v) for<br />
all v ∈ V if <strong>and</strong> only if the following hold for every nontrivial partition F <strong>of</strong> V :<br />
γ ≥ (|F| − 1)k + l − eH0(F) , (7.20)<br />
min<br />
i m(V − Xi) ≥ (|F| − 1)k + l − eH0(F) . (7.21)<br />
In addition, H can be chosen so that<br />
<br />
m(V )<br />
m(V )<br />
≤ |e| ≤<br />
γ<br />
γ<br />
for every e ∈ E. (7.22)
