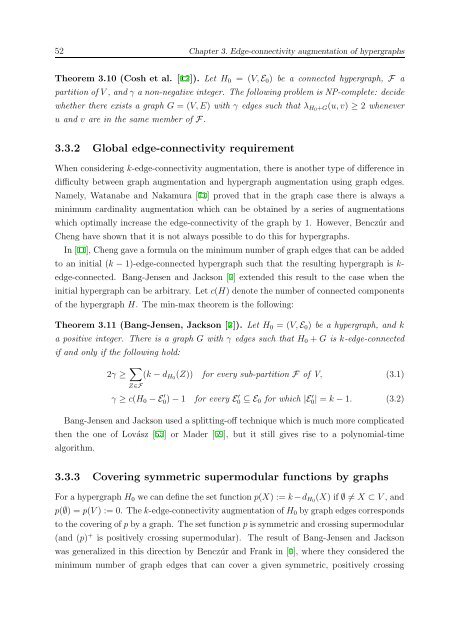

52 Chapter 3. Edge-connectivity augmentation of hypergraphs Theorem 3.10 (Cosh et al. [12]). Let H0 = (V, E0) be a connected hypergraph, F a partition of V , and γ a non-negative integer. The following problem is NP-complete: decide whether there exists a graph G = (V, E) with γ edges such that λH0+G(u, v) ≥ 2 whenever u and v are in the same member of F. 3.3.2 Global edge-connectivity requirement When considering k-edge-connectivity augmentation, there is another type of difference in difficulty between graph augmentation and hypergraph augmentation using graph edges. Namely, Watanabe and Nakamura [71] proved that in the graph case there is always a minimum cardinality augmentation which can be obtained by a series of augmentations which optimally increase the edge-connectivity of the graph by 1. However, Benczúr and Cheng have shown that it is not always possible to do this for hypergraphs. In [11], Cheng gave a formula on the minimum number of graph edges that can be added to an initial (k − 1)-edge-connected hypergraph such that the resulting hypergraph is k- edge-connected. Bang-Jensen and Jackson [2] extended this result to the case when the initial hypergraph can be arbitrary. Let c(H) denote the number of connected components of the hypergraph H. The min-max theorem is the following: Theorem 3.11 (Bang-Jensen, Jackson [2]). Let H0 = (V, E0) be a hypergraph, and k a positive integer. There is a graph G with γ edges such that H0 + G is k-edge-connected if and only if the following hold: 2γ ≥ (k − dH0(Z)) for every sub-partition F of V, (3.1) Z∈F γ ≥ c(H0 − E ′ 0) − 1 for every E ′ 0 ⊆ E0 for which |E ′ 0| = k − 1. (3.2) Bang-Jensen and Jackson used a splitting-off technique which is much more complicated then the one of Lovász [55] or Mader [59], but it still gives rise to a polynomial-time algorithm. 3.3.3 Covering symmetric supermodular functions by graphs For a hypergraph H0 we can define the set function p(X) := k −dH0(X) if ∅ = X ⊂ V , and p(∅) = p(V ) := 0. The k-edge-connectivity augmentation of H0 by graph edges corresponds to the covering of p by a graph. The set function p is symmetric and crossing supermodular (and (p) + is positively crossing supermodular). The result of Bang-Jensen and Jackson was generalized in this direction by Benczúr and Frank in [9], where they considered the minimum number of graph edges that can cover a given symmetric, positively crossing
Section 3.4. Covering by uniform hypergraphs 53 Figure 3.1: A p-full partition with respect to p = 3−dH0: the components after the deletion of 2 hyperedges supermodular set function. This more abstract setting provided a better insight into the combinatorial structure underlying the augmentation problem. If there is a partition F = {V1, . . . , Vl} such that p(∪i∈IVi) > 0 for every ∅ = I ⊂ {1, . . . , l}, then the number of edges of the covering graph is at least l − 1, since the edges must connect the members of the partition. Such partitions are called p-full and they play an important role in the solution of the problem. For example, when p(X) = k − dH0(X) if ∅ = X ⊂ V , then the components considered in (3.2) form a p-full partition (as illustrated on Figure 3.1). Benczúr and Frank proved the following theorem: Theorem 3.12 (Benczúr, Frank [9]). Let p : 2 V → Z+ be a symmetric, positively crossing supermodular set function. There is a graph with γ edges that covers p if and only if the following hold: 2γ ≥ p(Z) for every partition F of V , (3.3) Z∈F γ ≥ |F| − 1 for every p-full partition F. (3.4) The core of the proof is an extension of the splitting-off operation to this abstract setting, in order to provide a solution for the corresponding degree-specified problem. Note that in this theorem, in contrast to the skew supermodular case, the requirement of symmetry is important: one cannot make a non-symmetric p symmetric by taking max{p(X), p(V −X)} because this set function is not necessarily positively crossing supermodular. 3.4 Covering by uniform hypergraphs 3.4.1 Covering symmetric crossing families Another generalization of Cheng’s result due to Fleiner and Jordán [20] concerns the covering of symmetric crossing families by uniform hypergraphs. This includes the problem
