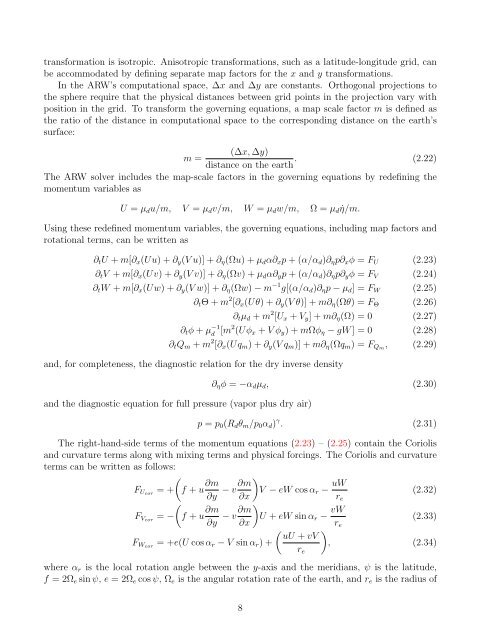

transformation is isotropic. Anisotropic transformations, such as a latitude-longitude grid, can<br />
be accommodated by defining separate map factors for the x and y transformations.<br />
In the <strong>ARW</strong>’s computational space, ∆x and ∆y are constants. Orthogonal projections to<br />
the sphere require that the physical distances between grid points in the projection vary with<br />
position in the grid. To transform the governing equations, a map scale factor m is defined as<br />
the ratio of the distance in computational space to the corresponding distance on the earth’s<br />
surface:<br />
(∆x, ∆y)<br />
m =<br />
. (2.22)<br />
distance on the earth<br />
The <strong>ARW</strong> solver includes the map-scale factors in the governing equations by redefining the<br />
momentum variables as<br />
U = µdu/m, V = µdv/m, W = µdw/m, Ω = µd ˙η/m.<br />
Using these redefined momentum variables, the governing equations, including map factors and<br />
rotational terms, can be written as<br />
∂tU + m[∂x(Uu) + ∂y(V u)] + ∂η(Ωu) + µdα∂xp + (α/αd)∂ηp∂xφ = FU<br />
∂tV + m[∂x(Uv) + ∂y(V v)] + ∂η(Ωv) + µdα∂yp + (α/αd)∂ηp∂yφ = FV<br />
∂tW + m[∂x(Uw) + ∂y(V w)] + ∂η(Ωw) − m −1 g[(α/αd)∂ηp − µd] = FW<br />
∂tΘ + m 2 [∂x(Uθ) + ∂y(V θ)] + m∂η(Ωθ) = FΘ<br />
(2.23)<br />
(2.24)<br />
(2.25)<br />
(2.26)<br />
∂tµd + m 2 [Ux + Vy] + m∂η(Ω) = 0 (2.27)<br />
∂tφ + µ −1<br />
d [m2 (Uφx + V φy) + mΩφη − gW ] = 0 (2.28)<br />
∂tQm + m 2 [∂x(Uqm) + ∂y(V qm)] + m∂η(Ωqm) = FQm, (2.29)<br />
and, for completeness, the diagnostic relation for the dry inverse density<br />
and the diagnostic equation for full pressure (vapor plus dry air)<br />
∂ηφ = −αdµd, (2.30)<br />
p = p0(Rdθm/p0αd) γ . (2.31)<br />
The right-hand-side terms of the momentum equations (2.23) – (2.25) contain the Coriolis<br />
and curvature terms along with mixing terms and physical forcings. The Coriolis and curvature<br />
terms can be written as follows:<br />
<br />
FUcor = + f + u ∂m<br />
∂y<br />
<br />
FVcor = − f + u ∂m<br />
∂y<br />
<br />
∂m<br />
− v<br />
∂x<br />
− v ∂m<br />
∂x<br />
V − eW cos αr − uW<br />
re<br />
<br />
U + eW sin αr − vW<br />
<br />
uU + vV<br />
FWcor = +e(U cos αr − V sin αr) +<br />
re<br />
re<br />
(2.32)<br />
(2.33)<br />
<br />
, (2.34)<br />
where αr is the local rotation angle between the y-axis and the meridians, ψ is the latitude,<br />
f = 2Ωe sin ψ, e = 2Ωe cos ψ, Ωe is the angular rotation rate of the earth, and re is the radius of<br />
8
