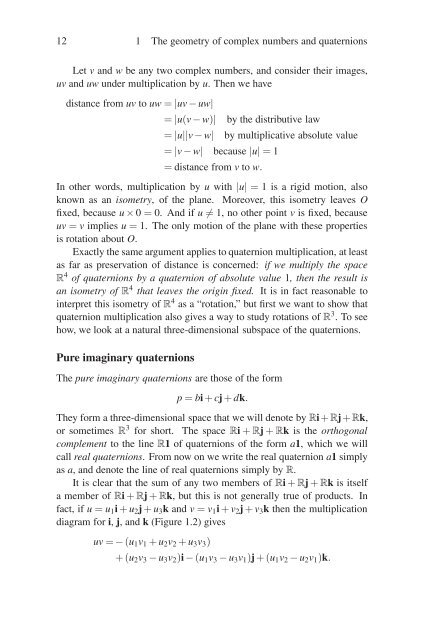

12 1 The geometry <strong>of</strong> complex numbers and quaternions<br />
Let v and w be any two complex numbers, and consider their images,<br />
uv and uw under multiplication by u. Thenwehave<br />
distance from uv to uw = |uv − uw|<br />
= |u(v − w)| by the distributive law<br />
= |u||v − w| by multiplicative absolute value<br />
= |v − w| because |u| = 1<br />
= distance from v to w.<br />
In other words, multiplication by u with |u| = 1 is a rigid motion, also<br />
known as an isometry, <strong>of</strong> the plane. Moreover, this isometry leaves O<br />
fixed, because u × 0 = 0. And if u ≠ 1, no other point v is fixed, because<br />
uv = v implies u = 1. The only motion <strong>of</strong> the plane with these properties<br />
is rotation about O.<br />
Exactly the same argument applies to quaternion multiplication, at least<br />
as far as preservation <strong>of</strong> distance is concerned: if we multiply the space<br />
R 4 <strong>of</strong> quaternions by a quaternion <strong>of</strong> absolute value 1, then the result is<br />
an isometry <strong>of</strong> R 4 that leaves the origin fixed. It is in fact reasonable to<br />
interpret this isometry <strong>of</strong> R 4 as a “rotation,” but first we want to show that<br />
quaternion multiplication also gives a way to study rotations <strong>of</strong> R 3 . To see<br />
how, we look at a natural three-dimensional subspace <strong>of</strong> the quaternions.<br />
Pure imaginary quaternions<br />
The pure imaginary quaternions are those <strong>of</strong> the form<br />
p = bi + cj + dk.<br />
They form a three-dimensional space that we will denote by Ri+Rj+Rk,<br />
or sometimes R 3 for short. The space Ri + Rj + Rk is the orthogonal<br />
complement to the line R1 <strong>of</strong> quaternions <strong>of</strong> the form a1, which we will<br />
call real quaternions. From now on we write the real quaternion a1 simply<br />
as a, and denote the line <strong>of</strong> real quaternions simply by R.<br />
It is clear that the sum <strong>of</strong> any two members <strong>of</strong> Ri + Rj + Rk is itself<br />
amember<strong>of</strong>Ri + Rj + Rk, but this is not generally true <strong>of</strong> products. In<br />
fact, if u = u 1 i + u 2 j + u 3 k and v = v 1 i + v 2 j + v 3 k then the multiplication<br />
diagram for i, j, andk (Figure 1.2) gives<br />
uv = − (u 1 v 1 + u 2 v 2 + u 3 v 3 )<br />
+(u 2 v 3 − u 3 v 2 )i − (u 1 v 3 − u 3 v 1 )j +(u 1 v 2 − u 2 v 1 )k.
