However this thesis will never read “smoothly” from the first to the last line as some repetitions occur and no global reorganization of the material has been carried out. Nonetheless the results which are repeated within Chapters 3-6 are very important! Hence we hope that the added bit of reinforcement learning might be actually beneficial to the reader. 1.2.2 Main Results Here we give an overview of the main results of this thesis and provide the references to the journal publications of Chapters 3-6. 1. Chapter 3, [56]: A detailed description of the FitzHugh-Nagumo equation and known results about its bifurcations is given. The fast-slow decompo- sition of the system is analyzed forǫ= 0. A transformation into a three- time scale system is introduced and is used to investigate canards and periodic orbits in the system. Hamiltonian dynamics is used to describe homoclinic orbits representing slow waves and Lin’s method is used to calculate the singular limit location of fast waves. The concept of singular bifurcation diagram is introduced and the diagram for the FitzHugh- Nagumo equation is computed. It is shown that the CU-bifurcation structure forǫ> 0 converges asǫ→ 0 to the singular limit diagram. For this purpose a specialized numerical splitting method is developed. 2. Chapter 4, [55]: An algorithm to calculate slow manifolds of saddle-type (SMST) is developed. It is based on cubic Hermite interpolation. The er- ror for a linear test problem is calculated and the algorithm is applied to several examples. The main example is the FitzHugh-Nagumo equation 13

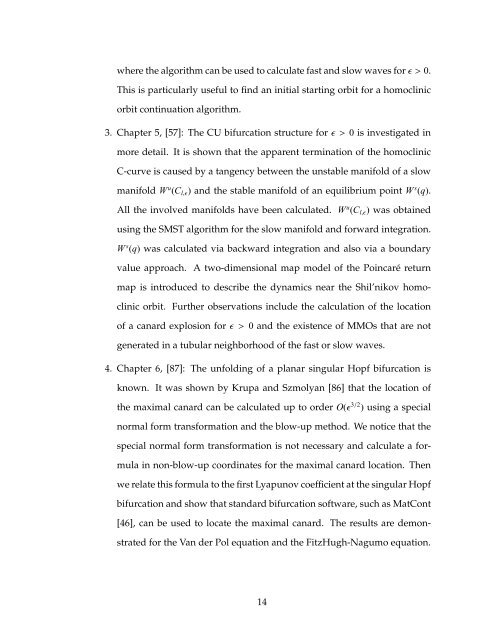

where the algorithm can be used to calculate fast and slow waves forǫ> 0. This is particularly useful to find an initial starting orbit for a homoclinic orbit continuation algorithm. 3. Chapter 5, [57]: The CU bifurcation structure forǫ> 0 is investigated in more detail. It is shown that the apparent termination of the homoclinic C-curve is caused by a tangency between the unstable manifold of a slow manifold W u (Cl,ǫ) and the stable manifold of an equilibrium point W s (q). All the involved manifolds have been calculated. W u (Cl,ǫ) was obtained using the SMST algorithm for the slow manifold and forward integration. W s (q) was calculated via backward integration and also via a boundary value approach. A two-dimensional map model of the Poincaré return map is introduced to describe the dynamics near the Shil’nikov homoclinic orbit. Further observations include the calculation of the location of a canard explosion forǫ > 0 and the existence of MMOs that are not generated in a tubular neighborhood of the fast or slow waves. 4. Chapter 6, [87]: The unfolding of a planar singular Hopf bifurcation is known. It was shown by Krupa and Szmolyan [86] that the location of the maximal canard can be calculated up to order O(ǫ 3/2 ) using a special normal form transformation and the blow-up method. We notice that the special normal form transformation is not necessary and calculate a formula in non-blow-up coordinates for the maximal canard location. Then we relate this formula to the first Lyapunov coefficient at the singular Hopf bifurcation and show that standard bifurcation software, such as MatCont [46], can be used to locate the maximal canard. The results are demon- strated for the Van der Pol equation and the FitzHugh-Nagumo equation. 14
