y< f (x1,−)), two equilibrium points if the plane is tangent to C at a fold point (i.e. y= f (x1,±)) and three equilibria if we choose y so that the plane intersects C three times; see Figure 2.4. Let us focus on the last case and stay away from the fold points. In this case the fast subsystem has two saddle equilibria located on Cl and Cr and an unstable spiral on Cm. It was shown analytically in [2] that there exists a wave speed s ∗ such that (2.16) has a heteroclinic connection between the two saddles at y=0 and for a value of y ∗ with 0

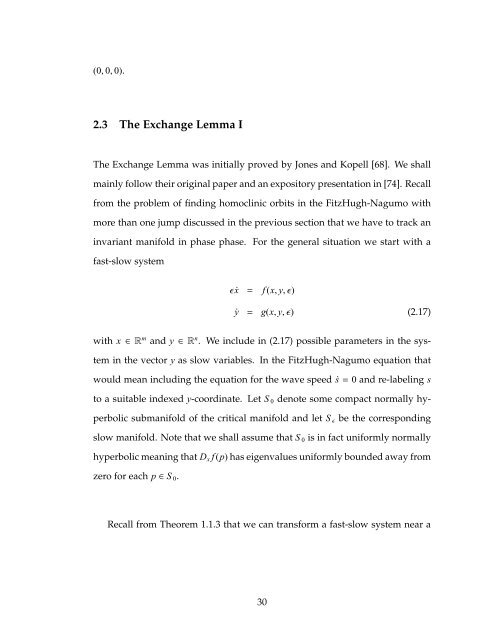

(0, 0, 0). 2.3 The Exchange Lemma I The Exchange Lemma was initially proved by Jones and Kopell [68]. We shall mainly follow their original paper and an expository presentation in [74]. Recall from the problem of finding homoclinic orbits in the FitzHugh-Nagumo with more than one jump discussed in the previous section that we have to track an invariant manifold in phase phase. For the general situation we start with a fast-slow system ǫ ˙x = f (x, y,ǫ) ˙y = g(x, y,ǫ) (2.17) with x∈R m and y∈R n . We include in (2.17) possible parameters in the system in the vector y as slow variables. In the FitzHugh-Nagumo equation that would mean including the equation for the wave speed ˙s=0 and re-labeling s to a suitable indexed y-coordinate. Let S 0 denote some compact normally hyperbolic submanifold of the critical manifold and let Sǫ be the corresponding slow manifold. Note that we shall assume that S 0 is in fact uniformly normally hyperbolic meaning that Dx f (p) has eigenvalues uniformly bounded away from zero for each p∈S 0. Recall from Theorem 1.1.3 that we can transform a fast-slow system near a 30
