38 CHAPTER 4. SIMULATION METHODS polymer with N ≫ 1 monomers. Since in MD simulation the smallest time-scale of the model must be simulated, it cannot be effectively applied to our problem. We therefore concentrate on the Monte-Carlo simulation in the following sections. For a very good introduction also refer to [35]. 4.2 The Monte-Carlo method In statistical physics ensemble averages of fluctuating quantities are of special interest. To obtain these averages, integrals of the following form have to be evaluated (schematically for one dimension) 〈A〉 p = +∞ −∞ dx A(x)p(x) . (4.1) φ(x) This example could be an average of an observable A(x) (“score function”) weighted by the probability distribution p(x), where the integral corresponds—in the language of statistical mechanics—to a ‘sum’ over all states. But the method explained in the following is applicable to every integral presentable in this form. When eq. (4.1) is not analytically solvable then one has to resort to numerical methods. The direct way would be to divide the integration range—which can be of any dimension—into n equidistant intervals and evaluate the sum over {φ(xi)} on the discrete set of points {xi} (Riemann integral). In this way the error of the approximative result in this deterministic algorithm reduces with n −1/d depending on the dimensionality d. Therefore this method becomes very ineffective for higher dimensions d. But in particular high-dimensional integrals is what we are calculating in statistical mechanical problems, therefore we need a smart way to increase the efficiency of the numerical integration. The basic idea of Monte-Carlo 1 evaluation of an integral is to choose the n discretization points/sample points {xi} randomly out of the probability distribution p(x) such that the sum has to be performed only over the observable quantity at the so generated points {A(xi)}. This algorithm has the advantage of a statistical error proportional to n −1/2 , independent of the dimension which outperforms the deterministic calculation for n ≥ 3. But both algorithms have the problem, that they are very inefficient, when the problem under investigation has a large inherent variance, due to the fact that the computational time grows proportional to n and the variance is inversely proportional to √ n. This problem is seen in the following way: If the probability distribution of the random numbers is such, that the important region of the observable is poorly sampled and therefore the variance is large, a huge number of samples may be needed to get a reliable result. It may happen, that the interesting region is 1 The name ought to bring the casinos of Monte-Carlo to mind.

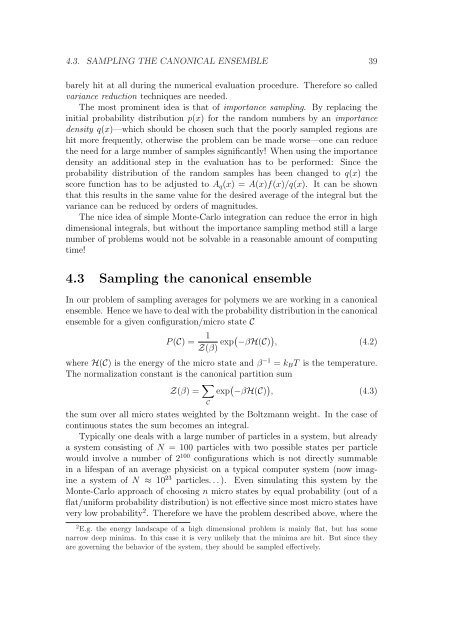

4.3. SAMPLING THE CANONICAL ENSEMBLE 39 barely hit at all during the numerical evaluation procedure. Therefore so called variance reduction techniques are needed. The most prominent idea is that of importance sampling. By replacing the initial probability distribution p(x) for the random numbers by an importance density q(x)—which should be chosen such that the poorly sampled regions are hit more frequently, otherwise the problem can be made worse—one can reduce the need for a large number of samples significantly! When using the importance density an additional step in the evaluation has to be performed: Since the probability distribution of the random samples has been changed to q(x) the score function has to be adjusted to Aq(x) = A(x)f(x)/q(x). It can be shown that this results in the same value for the desired average of the integral but the variance can be reduced by orders of magnitudes. The nice idea of simple Monte-Carlo integration can reduce the error in high dimensional integrals, but without the importance sampling method still a large number of problems would not be solvable in a reasonable amount of computing time! 4.3 Sampling the canonical ensemble In our problem of sampling averages for polymers we are working in a canonical ensemble. Hence we have to deal with the probability distribution in the canonical ensemble for a given configuration/micro state C P (C) = 1 Z(β) exp −βH(C) , (4.2) where H(C) is the energy of the micro state and β−1 = kBT is the temperature. The normalization constant is the canonical partition sum Z(β) = exp −βH(C) , (4.3) C the sum over all micro states weighted by the Boltzmann weight. In the case of continuous states the sum becomes an integral. Typically one deals with a large number of particles in a system, but already a system consisting of N = 100 particles with two possible states per particle would involve a number of 2 100 configurations which is not directly summable in a lifespan of an average physicist on a typical computer system (now imagine a system of N ≈ 10 23 particles. . . ). Even simulating this system by the Monte-Carlo approach of choosing n micro states by equal probability (out of a flat/uniform probability distribution) is not effective since most micro states have very low probability 2 . Therefore we have the problem described above, where the 2 E.g. the energy landscape of a high dimensional problem is mainly flat, but has some narrow deep minima. In this case it is very unlikely that the minima are hit. But since they are governing the behavior of the system, they should be sampled effectively.
