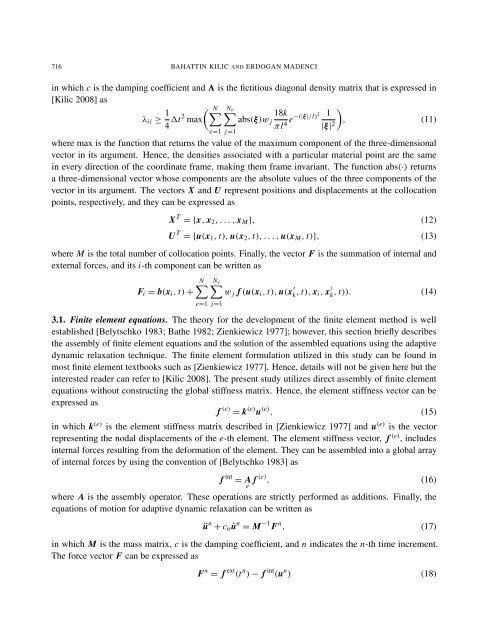

716 BAHATTIN KILIC AND ERDOGAN MADENCI<br />
in which c is the damping coefficient <strong>and</strong> � is the fictitious diagonal density matrix that is expressed in<br />
[Kilic 2008] as<br />
λii ≥ 1<br />
4 �t2 � N Ne � � 18k 1<br />
max abs(ξ)w j e−(|ξ|/l)2<br />
πl 4 |ξ| 2<br />
�<br />
, (11)<br />
e=1 j=1<br />
where max is the function that returns the value <strong>of</strong> the maximum component <strong>of</strong> the three-dimensional<br />
vector in its argument. Hence, the densities associated with a particular material point are the same<br />
in every direction <strong>of</strong> the coordinate frame, making them frame invariant. The function abs(·) returns<br />
a three-dimensional vector whose components are the absolute values <strong>of</strong> the three components <strong>of</strong> the<br />
vector in its argument. The vectors X <strong>and</strong> U represent positions <strong>and</strong> displacements at the collocation<br />
points, respectively, <strong>and</strong> they can be expressed as<br />
X T = {x, x2, . . . , xM}, (12)<br />
U T = {u(x1, t), u(x2, t), . . . , u(xM, t)}, (13)<br />
where M is the total number <strong>of</strong> collocation points. Finally, the vector F is the summation <strong>of</strong> internal <strong>and</strong><br />
external forces, <strong>and</strong> its i-th component can be written as<br />
Fi = b(xi, t) +<br />
N� Ne �<br />
e=1 j=1<br />
w j f (u(xi, t), u(x ′ k , t), xi, x ′ k , t)). (14)<br />
3.1. Finite element equations. The theory for the development <strong>of</strong> the finite element method is well<br />
established [Belytschko 1983; Bathe 1982; Zienkiewicz 1977]; however, this section briefly describes<br />
the assembly <strong>of</strong> finite element equations <strong>and</strong> the solution <strong>of</strong> the assembled equations using the adaptive<br />
dynamic relaxation technique. The finite element formulation utilized in this study can be found in<br />
most finite element textbooks such as [Zienkiewicz 1977]. Hence, details will not be given here but the<br />
interested reader can refer to [Kilic 2008]. The present study utilizes direct assembly <strong>of</strong> finite element<br />
equations without constructing the global stiffness matrix. Hence, the element stiffness vector can be<br />
expressed as<br />
f (e) = k (e) u (e) , (15)<br />
in which k (e) is the element stiffness matrix described in [Zienkiewicz 1977] <strong>and</strong> u (e) is the vector<br />
representing the nodal displacements <strong>of</strong> the e-th element. The element stiffness vector, f (e) , includes<br />
internal forces resulting from the deformation <strong>of</strong> the element. They can be assembled into a global array<br />
<strong>of</strong> internal forces by using the convention <strong>of</strong> [Belytschko 1983] as<br />
f int = A e f (e) , (16)<br />
where A is the assembly operator. These operations are strictly performed as additions. Finally, the<br />
equations <strong>of</strong> motion for adaptive dynamic relaxation can be written as<br />
ü n + cn ˙u n = M −1 F n , (17)<br />
in which M is the mass matrix, c is the damping coefficient, <strong>and</strong> n indicates the n-th time increment.<br />
The force vector F can be expressed as<br />
F n = f ext (t n ) − f int (u n ) (18)
