But now the right-hand side is always negative. Consequently, there is no non-trivial solution and thus no<br />
<strong>superconductivity</strong> for a k-independent repulsion.<br />
Now let us look at a strong interaction between nearest-neighbor sites. We consider a two-dimensional square<br />
lattice for simplicity and since it is thought to be a good model for the cuprates. In momentum space, a nearestneighbor<br />
interaction is written as<br />
V kk ′ = 2V 1 [cos (k x − k ′ x)a + cos (k y − k ′ y)a], (12.6)<br />
where V 1 > 0 (V 1 < 0) for a repulsive (attractive) interaction. For our discussion <strong>of</strong> momentum-dependent<br />
interactions it is crucial to realized which terms in the k ′ sum in the gap equation<br />
∆ k = − 1 N<br />
∑<br />
k ′ V kk ′<br />
1 − n F (E k ′)<br />
2E k ′<br />
∆ k ′ (12.7)<br />
are most important. The factor [1−n F (E k ′)]/2E k ′ is largest on the normal-state Fermi surface, where E k = |∆ k |,<br />
and is exponentially suppressed on an energy scale <strong>of</strong> k B T away from it. Thus only the vicinity <strong>of</strong> the Fermi<br />
surface is important.<br />
Let us first consider the repulsive case V 1 > 0. Then V kk ′ is most strongly repulsive (positive) for momentum<br />
transfer k − k ′ → 0. But ∆ k should be a smooth function <strong>of</strong> k, thus for k and k ′ close together, ∆ k and ∆ k ′ are<br />
also similar. In particular, ∆ k will rarely change its sign between k and k ′ . Consequently, the right-hand side<br />
<strong>of</strong> the gap equation always contains a large contribution with sign opposite to that <strong>of</strong> ∆ k , coming from the sum<br />
over k ′ close to k. Hence, a repulsive nearest-neighbor interaction is unlikely to lead to <strong>superconductivity</strong>.<br />
For the attractive case, V 1 < 0, V kk ′ is most strongly attractive for k − k ′ → 0 and most strongly repulsive<br />
for k − k ′ → (π/a, π/a) and equivalent points in the Brillouin zone. The attraction at small q = k − k ′ is always<br />
favorable for <strong>superconductivity</strong>. However, we also have an equally strong repulsion around q ≈ (π/a, π/a). A<br />
critical situation thus arises if both k and k ′ lie close to the Fermi surface and their difference is close to (π/a, π/a).<br />
The central insight is that this can still help <strong>superconductivity</strong> if the gaps ∆ k and ∆ k ′ at k and k ′ , respectively,<br />
have opposite sign. In this case the contribution to the right-hand side <strong>of</strong> the gap equation from such k ′ has the<br />
same sign as ∆ k since V kk ′ > 0 and there is an explicit minus sign.<br />
This effect is crucial in the cuprates, which do have an effective attractive nearest-neighbor interaction and<br />

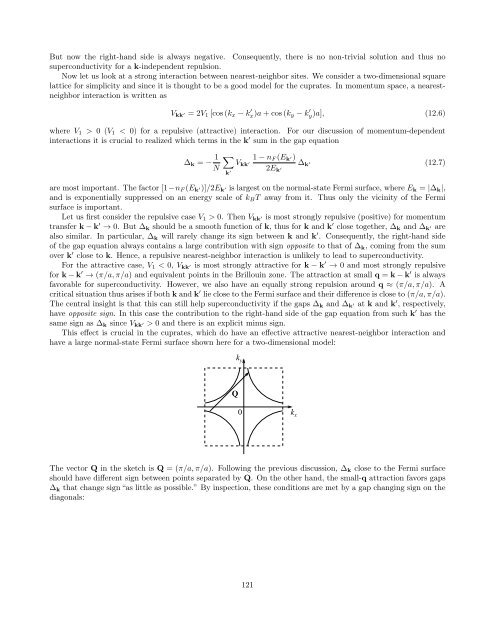

have a large normal-state Fermi surface shown here for a two-dimensional model:<br />
k y<br />
Q<br />
0<br />
k x<br />
The vector Q in the sketch is Q = (π/a, π/a). Following the previous discussion, ∆ k close to the Fermi surface<br />
should have different sign between points separated by Q. On the other hand, the small-q attraction favors gaps<br />
∆ k that change sign “as little as possible.” By inspection, these conditions are met by a gap changing sign on the<br />
diagonals:<br />
121
