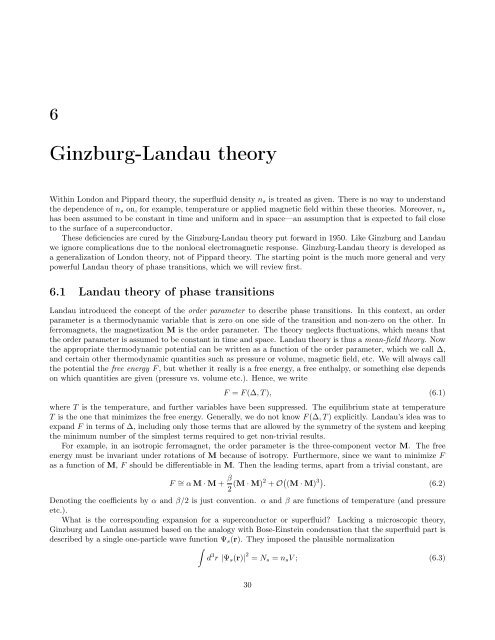

6 Ginzburg-Landau theory Within London and Pippard theory, the superfluid density n s is treated as given. There is no way to understand the dependence of n s on, for example, temperature or applied magnetic field within these theories. Moreover, n s has been assumed to be constant in time and uniform and in space—an assumption that is expected to fail close to the surface of a superconductor. These deficiencies are cured by the Ginzburg-Landau theory put forward in 1950. Like Ginzburg and Landau we ignore complications due to the nonlocal electromagnetic response. Ginzburg-Landau theory is developed as a generalization of London theory, not of Pippard theory. The starting point is the much more general and very powerful Landau theory of phase transitions, which we will review first. 6.1 Landau theory of phase transitions Landau introduced the concept of the order parameter to describe phase transitions. In this context, an order parameter is a thermodynamic variable that is zero on one side of the transition and non-zero on the other. In ferromagnets, the magnetization M is the order parameter. The theory neglects fluctuations, which means that the order parameter is assumed to be constant in time and space. Landau theory is thus a mean-field theory. Now the appropriate thermodynamic potential can be written as a function of the order parameter, which we call ∆, and certain other thermodynamic quantities such as pressure or volume, magnetic field, etc. We will always call the potential the free energy F , but whether it really is a free energy, a free enthalpy, or something else depends on which quantities are given (pressure vs. volume etc.). Hence, we write F = F (∆, T ), (6.1) where T is the temperature, and further variables have been suppressed. The equilibrium state at temperature T is the one that minimizes the free energy. Generally, we do not know F (∆, T ) explicitly. Landau’s idea was to expand F in terms of ∆, including only those terms that are allowed by the symmetry of the system and keeping the minimum number of the simplest terms required to get non-trivial results. For example, in an isotropic ferromagnet, the order parameter is the three-component vector M. The free energy must be invariant under rotations of M because of isotropy. Furthermore, since we want to minimize F as a function of M, F should be differentiable in M. Then the leading terms, apart from a trivial constant, are F ∼ = α M · M + β 2 (M · M)2 + O ( (M · M) 3) . (6.2) Denoting the coefficients by α and β/2 is just convention. α and β are functions of temperature (and pressure etc.). What is the corresponding expansion for a superconductor or superfluid? Lacking a microscopic theory, Ginzburg and Landau assumed based on the analogy with Bose-Einstein condensation that the superfluid part is described by a single one-particle wave function Ψ s (r). They imposed the plausible normalization ∫ d 3 r |Ψ s (r)| 2 = N s = n s V ; (6.3) 30
N s is the total number of particles in the condensate. They then chose the complex amplitude ψ of Ψ s (r) as the order parameter, with the normalization |ψ| 2 ∝ n s . (6.4) Thus the order parameter in this case is a complex number. They thereby neglect the spatial variation of Ψ s (r) on an atomic scale. The free energy must not depend on the global phase of Ψ s (r) because the global phase of quantum states is not observable. Thus we obtain the expansion F = α |ψ| 2 + β 2 |ψ|4 + O(|ψ| 6 ). (6.5) Only the absolute value |ψ| appears since F is real. Odd powers are excluded since they are not differentiable at ψ = 0. If β > 0, which is not guaranteed by symmetry but is the case for superconductors and superfluids, we can neglect higher order terms since β > 0 then makes sure that F (ψ) is bounded from below. Now there are two cases: • If α ≥ 0, F (ψ) has a single minimum at ψ = 0. Thus the equilibrium state has n s = 0. This is clearly a normal metal (n n = n) or a normal fluid. • If α < 0, F (ψ) has a ring of minima with equal amplitude (modulus) |ψ| but arbitrary phase. We easily see √ ∂F ∂ |ψ| = 2α |ψ| + 2β |ψ|3 = 0 ⇒ |ψ| = 0 (this is a maximum) or |ψ| = − α (6.6) β Note that the radicand is positive. F α > 0 α = 0 α < 0 0 Re ψ Imagine this figure rotated around the vertical axis to find F as a function of the complex ψ. F (ψ) for α < 0 is often called the “Mexican-hat potential.” In Landau theory, the phase transition clearly occurs when α = 0. Since then T = T c by definition, it is useful to expand α and β to leading order in T around T c . Hence, Then the order parameter below T c satisfies √ |ψ| = ψ α/ β α ∼ = α ′ (T − T c ), α ′ > 0, (6.7) β ∼ = const. (6.8) − α′ (T − T c ) β = √ α ′ √ T − Tc . (6.9) β T c T 31
