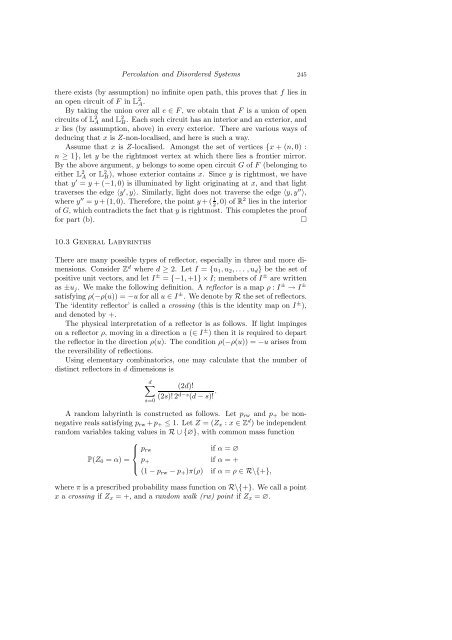

Percolation and Disordered Systems 245<br />
there exists (by assumption) no infinite open path, this proves that f lies in<br />
an open circuit of F in L2 A .<br />
By taking the union over all e ∈ F, we obtain that F is a union of open<br />
circuits of L 2 A and L2 B<br />
. Each such circuit has an interior and an exterior, and<br />
x lies (by assumption, above) in every exterior. There are various ways of<br />
deducing that x is Z-non-localised, and here is such a way.<br />
Assume that x is Z-localised. Amongst the set of vertices {x + (n, 0) :<br />
n ≥ 1}, let y be the rightmost vertex at which there lies a frontier mirror.<br />
By the above argument, y belongs to some open circuit G of F (belonging to<br />
either L 2 A or L2 B<br />
), whose exterior contains x. Since y is rightmost, we have<br />
that y ′ = y + (−1, 0) is illuminated by light originating at x, and that light<br />
traverses the edge 〈y ′ , y〉. Similarly, light does not traverse the edge 〈y, y ′′ 〉,<br />
where y ′′ = y +(1, 0). Therefore, the point y +( 1<br />
2 , 0) of R2 lies in the interior<br />
of G, which contradicts the fact that y is rightmost. This completes the proof<br />
for part (b). �<br />
10.3 General Labyrinths<br />
There are many possible types of reflector, especially in three and more dimensions.<br />
Consider Z d where d ≥ 2. Let I = {u1, u2, . . . , ud} be the set of<br />
positive unit vectors, and let I ± = {−1, +1} × I; members of I ± are written<br />
as ±uj. We make the following definition. A reflector is a map ρ : I ± → I ±<br />
satisfying ρ(−ρ(u)) = −u for all u ∈ I ± . We denote by R the set of reflectors.<br />
The ‘identity reflector’ is called a crossing (this is the identity map on I ± ),<br />
and denoted by +.<br />
The physical interpretation of a reflector is as follows. If light impinges<br />
on a reflector ρ, moving in a direction u (∈ I ± ) then it is required to depart<br />
the reflector in the direction ρ(u). The condition ρ(−ρ(u)) = −u arises from<br />
the reversibility of reflections.<br />
Using elementary combinatorics, one may calculate that the number of<br />
distinct reflectors in d dimensions is<br />
d�<br />
s=0<br />
(2d)!<br />
(2s)! 2 d−s (d − s)! .<br />
A random labyrinth is constructed as follows. Let prw and p+ be nonnegative<br />
reals satisfying prw +p+ ≤ 1. Let Z = (Zx : x ∈ Zd ) be independent<br />
random variables taking values in R ∪ {∅}, with common mass function<br />
⎧<br />
⎪⎨ prw<br />
if α = ∅<br />
P(Z0 = α) = p+<br />
if α = +<br />
⎪⎩<br />
(1 − prw − p+)π(ρ) if α = ρ ∈ R\{+},<br />
where π is a prescribed probability mass function on R\{+}. We call a point<br />
x a crossing if Zx = +, and a random walk (rw) point if Zx = ∅.
