Percolation and Disordered Systems 225<br />

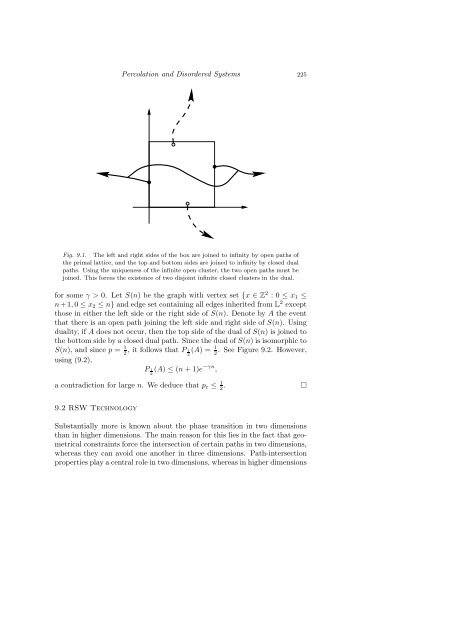

Fig. 9.1. The left and right sides of the box are joined to infinity by open paths of<br />
the primal lattice, and the top and bottom sides are joined to infinity by closed dual<br />
paths. Using the uniqueness of the infinite open cluster, the two open paths must be<br />
joined. This forces the existence of two disjoint infinite closed clusters in the dual.<br />
for some γ > 0. Let S(n) be the graph with vertex set {x ∈ Z 2 : 0 ≤ x1 ≤<br />
n+1, 0 ≤ x2 ≤ n} and edge set containing all edges inherited from L 2 except<br />
those in either the left side or the right side of S(n). Denote by A the event<br />
that there is an open path joining the left side and right side of S(n). Using<br />
duality, if A does not occur, then the top side of the dual of S(n) is joined to<br />
the bottom side by a closed dual path. Since the dual of S(n) is isomorphic to<br />
S(n), and since p = 1<br />
1<br />
2 , it follows that P1 (A) =<br />
2 2 . See Figure 9.2. However,<br />
using (9.2),<br />
P1<br />
2 (A) ≤ (n + 1)e−γn ,<br />
a contradiction for large n. We deduce that pc ≤ 1<br />
2 . �<br />
9.2 RSW Technology<br />
Substantially more is known about the phase transition in two dimensions<br />
than in higher dimensions. The main reason for this lies in the fact that geometrical<br />
constraints force the intersection of certain paths in two dimensions,<br />
whereas they can avoid one another in three dimensions. Path-intersection<br />
properties play a central role in two dimensions, whereas in higher dimensions
