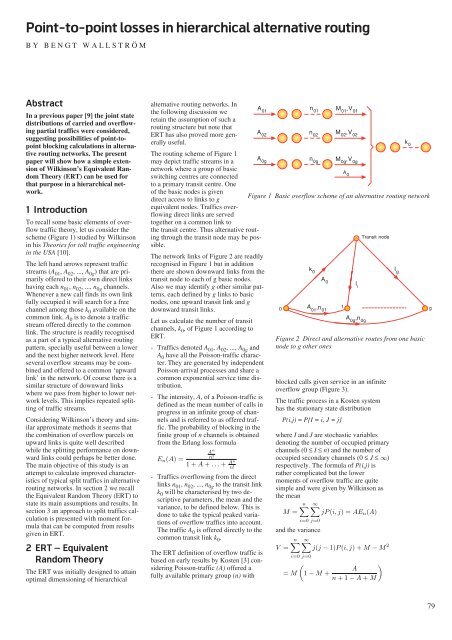

Point-to-point losses in hierarchical alternative routing<br />
BY BENGT WALLSTRÖM<br />
Abstract<br />
In a previous paper [9] the joint state<br />
distributions of carried and overflowing<br />
partial traffics were considered,<br />
suggesting possibilities of point-topoint<br />
blocking calculations in alternative<br />
routing networks. The present<br />
paper will show how a simple extension<br />
of Wilkinson’s Equivalent Random<br />
Theory (ERT) can be used for<br />
that purpose in a hierarchical network.<br />
1 Introduction<br />
To recall some basic elements of overflow<br />
traffic theory, let us consider the<br />
scheme (Figure 1) studied by Wilkinson<br />
in his Theories for toll traffic engineering<br />
in the USA [10].<br />
The left hand arrows represent traffic<br />
streams (A01 , A02 , ..., A0g ) that are primarily<br />
offered to their own direct links<br />
having each n01 , n02 , ..., n0g channels.<br />
Whenever a new call finds its own link<br />
fully occupied it will search for a free<br />
channel among those k0 available on the<br />
common link. A0 is to denote a traffic<br />
stream offered directly to the common<br />
link. The structure is readily recognised<br />
as a part of a typical alternative routing<br />
pattern, specially useful between a lower<br />
and the next higher network level. Here<br />
several overflow streams may be combined<br />
and offered to a common ‘upward<br />
link’ in the network. Of course there is a<br />
similar structure of downward links<br />
where we pass from higher to lower network<br />
levels. This implies repeated splitting<br />
of traffic streams.<br />
Considering Wilkinson’s theory and similar<br />
approximate methods it seems that<br />
the combination of overflow parcels on<br />
upward links is quite well described<br />
while the splitting performance on downward<br />
links could perhaps be better done.<br />
The main objective of this study is an<br />
attempt to calculate improved characteristics<br />
of typical split traffics in alternative<br />
routing networks. In section 2 we recall<br />
the Equivalent Random Theory (ERT) to<br />
state its main assumptions and results. In<br />
section 3 an approach to split traffics calculation<br />
is presented with moment formula<br />
that can be computed from results<br />
given in ERT.<br />
2 ERT – Equivalent<br />
Random Theory<br />
The ERT was initially designed to attain<br />
optimal dimensioning of hierarchical<br />
alternative routing networks. In<br />
A<br />
the following discussion we<br />
01<br />
retain the assumption of such a<br />
routing structure but note that<br />
ERT has also proved more gen- A02 erally useful.<br />
The routing scheme of Figure 1<br />
may depict traffic streams in a<br />
A0g network where a group of basic<br />
switching centres are connected<br />
to a primary transit centre. One<br />
of the basic nodes is given<br />
direct access to links to g<br />
equivalent nodes. Traffics overflowing<br />
direct links are served<br />
together on a common link to<br />
the transit centre. Thus alternative routing<br />
through the transit node may be possible.<br />
The network links of Figure 2 are readily<br />
recognised in Figure 1 but in addition<br />
there are shown downward links from the<br />
transit node to each of g basic nodes.<br />
Also we may identify g other similar patterns,<br />
each defined by g links to basic<br />
nodes, one upward transit link and g<br />
downward transit links.<br />
Let us calculate the number of transit<br />
channels, k0 , of Figure 1 according to<br />
ERT.<br />
- Traffics denoted A01 , A02 , ..., A0g and<br />
A0 have all the Poisson-traffic character.<br />
They are generated by independent<br />
Poisson-arrival processes and share a<br />
common exponential service time distribution.<br />
- The intensity, A, of a Poisson-traffic is<br />
defined as the mean number of calls in<br />
progress in an infinite group of channels<br />
and is referred to as offered traffic.<br />
The probability of blocking in the<br />
finite group of n channels is obtained<br />
from the Erlang loss formula<br />
En(A) =<br />
A n<br />
n!<br />
1+A + ...+ An<br />
n!<br />
- Traffics overflowing from the direct<br />
links n 01 , n 02 , ..., n 0g to the transit link<br />
k 0 will be characterised by two descriptive<br />
parameters, the mean and the<br />
variance, to be defined below. This is<br />
done to take the typical peaked variations<br />
of overflow traffics into account.<br />
The traffic A 0 is offered directly to the<br />
common transit link k 0 .<br />
The ERT definition of overflow traffic is<br />
based on early results by Kosten [3] considering<br />
Poisson-traffic (A) offered a<br />
fully available primary group (n) with<br />
0<br />
n 01<br />
n 02<br />
n 0g<br />
k 0<br />
A 0<br />
A 01 ,n 01<br />
M 01 ,V 01<br />
M 02 ,V 02<br />
M 0g ,V 0g<br />
Figure 1 Basic overflow scheme of an alternative routing network<br />
blocked calls given service in an infinite<br />
overflow group (Figure 3).<br />
The traffic process in a Kosten system<br />
has the stationary state distribution<br />
P(i,j) = P{I = i, J = j}<br />
where I and J are stochastic variables<br />
denoting the number of occupied primary<br />
channels (0 ≤ I ≤ n) and the number of<br />
occupied secondary channels (0 ≤ J ≤ ∞)<br />
respectively. The formula of P(i,j) is<br />
rather complicated but the lower<br />
moments of overflow traffic are quite<br />
simple and were given by Wilkinson as<br />
the mean<br />
n� ∞�<br />
M = jP(i, j) =AEn(A)<br />
A 0<br />
and the variance<br />
n� ∞�<br />
V = j(j − 1)P (i, j)+M − M 2<br />
l ı<br />
1 g<br />
A 0g ,n 0g<br />
Transit node<br />
Figure 2 Direct and alternative routes from one basic<br />
node to g other ones<br />
i=0 j=0<br />
i=0 j=0<br />
= M<br />
�<br />
�<br />
A<br />
1 − M +<br />
n +1− A + M<br />
l g<br />
k 0<br />
