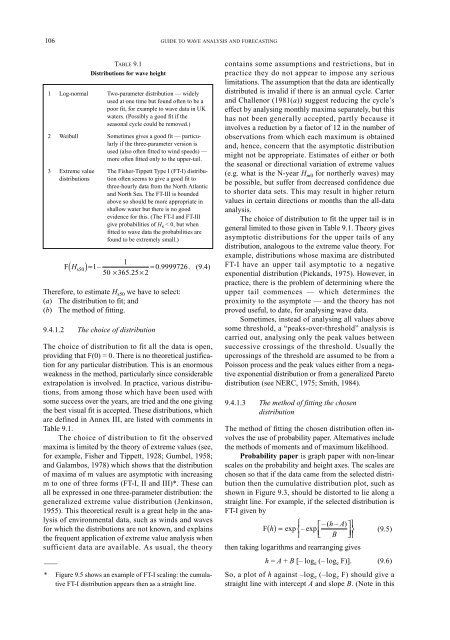

106<br />
1<br />
( )= 1<br />
0 9999726<br />
50 × 365 25× 2 ≈<br />
–<br />
. .<br />
.<br />
F Hs50 TABLE 9.1<br />
Distributions for wave height<br />
1 Log-normal Two-parameter distribution — widely<br />
used at one time but found often to be a<br />
poor fit, for example to wave data in UK<br />
waters. (Possibly a good fit if the<br />
seasonal cycle could be removed.)<br />
2 Weibull Sometimes gives a good fit — particularly<br />
if the three-parameter version is<br />
used (also often fitted to wind speeds) —<br />
more often fitted only to the upper-tail.<br />
3 Extreme value The Fisher-Tippett Type I (FT-I) distribudistributions<br />
tion often seems to give a good fit to<br />
three-hourly data from the North Atlantic<br />
and North Sea. The FT-III is bounded<br />
above so should be more appropriate in<br />
shallow water but there is no good<br />
evidence for this. (The FT-I and FT-III<br />
give probabilities of H s < 0, but when<br />
fitted to wave data the probabilities are<br />
found to be extremely small.)<br />
Therefore, to estimate H s50 we have to select:<br />
(a) The distribution to fit; and<br />
(b) The method of fitting.<br />
9.4.1.2 The choice of distribution<br />
(9.4)<br />
The choice of distribution to fit all the data is open,<br />
providing that F(0) = 0. There is no theoretical justification<br />
for any particular distribution. This is an enormous<br />
weakness in the method, particularly since considerable<br />
extrapolation is involved. In practice, various distributions,<br />
from among those which have been used with<br />
some success over the years, are tried and the one giving<br />
the best visual fit is accepted. These distributions, which<br />
are defined in Annex III, are listed with comments in<br />
Table 9.1.<br />
The choice of distribution to fit the observed<br />
maxima is limited by the theory of extreme values (see,<br />
for example, Fisher and Tippett, 1928; Gumbel, 1958;<br />
and Galambos, 1978) which shows that the distribution<br />
of maxima of m values are asymptotic with increasing<br />
m to one of three forms (FT-I, II and III)*. These can<br />
all be expressed in one three-parameter distribution: the<br />
generalized extreme value distribution (Jenkinson,<br />
1955). This theoretical result is a great help in the analysis<br />
of environmental data, such as winds and waves<br />
for which the distributions are not known, and explains<br />
the frequent application of extreme value analysis when<br />
sufficient data are available. As usual, the theory<br />
____<br />
* Figure 9.5 shows an example of FT-I scaling: the cumulative<br />
FT-I distribution appears then as a straight line.<br />
<strong>GUIDE</strong> TO <strong>WAVE</strong> <strong>ANALYSIS</strong> <strong>AND</strong> <strong>FORECASTING</strong><br />
contains some assumptions and restrictions, but in<br />
practice they do not appear to impose any serious<br />
limitations. The assumption that the data are identically<br />
distributed is invalid if there is an annual cycle. Carter<br />
and Challenor (1981(a)) suggest reducing the cycle’s<br />
effect by analysing monthly maxima separately, but this<br />
has not been generally accepted, partly because it<br />
involves a reduction by a factor of 12 in the number of<br />
observations from which each maximum is obtained<br />
and, hence, concern that the asymptotic distribution<br />
might not be appropriate. Estimates of either or both<br />
the seasonal or directional variation of extreme values<br />
(e.g. what is the N-year H m0 for northerly waves) may<br />
be possible, but suffer from decreased confidence due<br />
to shorter data sets. This may result in higher return<br />
values in certain directions or months than the all-data<br />
analysis.<br />
The choice of distribution to fit the upper tail is in<br />
general limited to those given in Table 9.1. Theory gives<br />
asymptotic distributions for the upper tails of any<br />
distribution, analogous to the extreme value theory. For<br />
example, distributions whose maxima are distributed<br />
FT-I have an upper tail asymptotic to a negative<br />
exponential distribution (Pickands, 1975). However, in<br />
practice, there is the problem of determining where the<br />
upper tail commences — which determines the<br />
proximity to the asymptote — and the theory has not<br />
proved useful, to date, for analysing wave data.<br />
Sometimes, instead of analysing all values above<br />
some threshold, a “peaks-over-threshold” analysis is<br />
carried out, analysing only the peak values between<br />
successive crossings of the threshold. Usually the<br />
upcrossings of the threshold are assumed to be from a<br />
Poisson process and the peak values either from a negative<br />
exponential distribution or from a generalized Pareto<br />
distribution (see NERC, 1975; Smith, 1984).<br />
9.4.1.3 The method of fitting the chosen<br />
distribution<br />
The method of fitting the chosen distribution often involves<br />
the use of probability paper. Alternatives include<br />
the methods of moments and of maximum likelihood.<br />
Probability paper is graph paper with non-linear<br />
scales on the probability and height axes. The scales are<br />
chosen so that if the data came from the selected distribution<br />
then the cumulative distribution plot, such as<br />
shown in Figure 9.3, should be distorted to lie along a<br />
straight line. For example, if the selected distribution is<br />
FT-I given by<br />
⎧ h A<br />
F( h)<br />
=<br />
⎡ – ( – ) ⎤⎫<br />
exp ⎨–<br />
exp ⎬ (9.5)<br />
⎩ ⎣⎢ B ⎦⎥<br />
⎭<br />
then taking logarithms and rearranging gives<br />
h = A + B [– loge (– loge F)]. (9.6)<br />
So, a plot of h against –loge (–loge F) should give a<br />
straight line with intercept A and slope B. (Note in this
