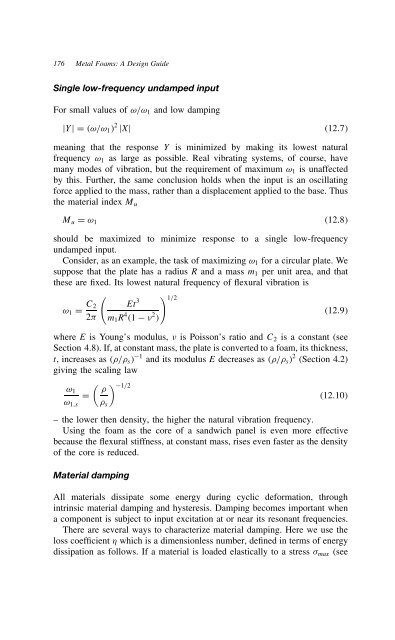

176 <strong>Metal</strong> <strong>Foams</strong>: A <strong>Design</strong> <strong>Guide</strong><br />
Single low-frequency undamped input<br />
For small values of ω/ω1 and low damping<br />
jYj D ⊲ω/ω1⊳ 2 jXj ⊲12.7⊳<br />
meaning that the response Y is minimized by making its lowest natural<br />
frequency ω1 as large as possible. Real vibrating systems, of course, have<br />
many modes of vibration, but the requirement of maximum ω1 is unaffected<br />
by this. Further, the same conclusion holds when the input is an oscillating<br />
force applied to the mass, rather than a displacement applied to the base. Thus<br />
the material index Mu<br />
Mu D ω1<br />
⊲12.8⊳<br />
should be maximized to minimize response to a single low-frequency<br />
undamped input.<br />
Consider, as an example, the task of maximizing ω1 for a circular plate. We<br />
suppose that the plate has a radius R and a mass m1 per unit area, and that<br />
these are fixed. Its lowest natural frequency of flexural vibration is<br />
�<br />
ω1 D C2<br />
2<br />
Et 3<br />
m1R 4 ⊲1<br />
2 ⊳<br />
� 1/2<br />
⊲12.9⊳<br />
where E is Young’s modulus, is Poisson’s ratio and C2 is a constant (see<br />
Section 4.8). If, at constant mass, the plate is converted to a foam, its thickness,<br />
t, increases as ⊲ / s⊳ 1 and its modulus E decreases as ⊲ / s⊳ 2 (Section 4.2)<br />
giving the scaling law<br />
ω1<br />
�<br />
D<br />
� 1/2<br />
⊲12.10⊳<br />
ω1,s<br />
s<br />
– the lower then density, the higher the natural vibration frequency.<br />
Using the foam as the core of a sandwich panel is even more effective<br />
because the flexural stiffness, at constant mass, rises even faster as the density<br />
of the core is reduced.<br />
Material damping<br />
All materials dissipate some energy during cyclic deformation, through<br />
intrinsic material damping and hysteresis. Damping becomes important when<br />
a component is subject to input excitation at or near its resonant frequencies.<br />
There are several ways to characterize material damping. Here we use the<br />
loss coefficient which is a dimensionless number, defined in terms of energy<br />
dissipation as follows. If a material is loaded elastically to a stress max (see
