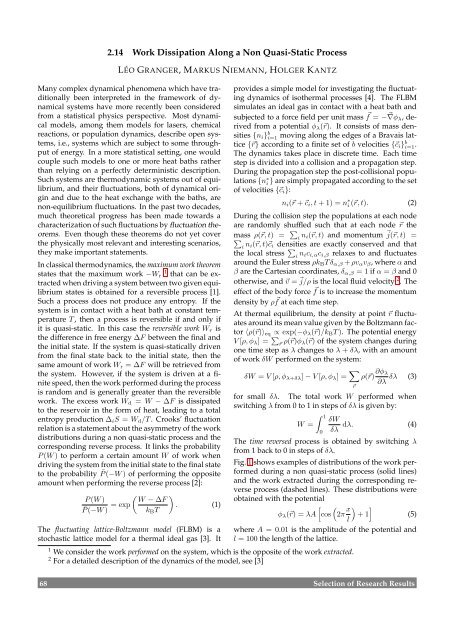

2.14 Work Dissipation Along a Non Quasi-Static Process<br />
LÉO GRANGER, MARKUS NIEMANN, HOLGER KANTZ<br />
Many complex dynamical phenomena which have traditionally<br />
been interpreted in the framework of dynamical<br />
systems have more recently been considered<br />
from a statistical physics perspective. Most dynamical<br />
models, among them models for lasers, chemical<br />
reactions, or population dynamics, describe open systems,<br />
i.e., systems which are subject to some throughput<br />
of energy. In a more statistical setting, one would<br />
couple such models to one or more heat baths rather<br />
than relying on a perfectly deterministic description.<br />
Such systems are thermodynamic systems out of equilibrium,<br />
and their fluctuations, both of dynamical origin<br />
and due to the heat exchange with the baths, are<br />
non-equilibrium fluctuations. In the past two decades,<br />
much theoretical progress has been made towards a<br />
characterization of such fluctuations by fluctuation theorems.<br />
Even though these theorems do not yet cover<br />
the physically most relevant and interesting scenarios,<br />
they make important statements.<br />
In classical thermodynamics, the maximum work theorem<br />
states that the maximum work −Wr 1 that can be extracted<br />
when driving a system between two given equilibrium<br />
states is obtained for a reversible process [1].<br />
Such a process does not produce any entropy. If the<br />
system is in contact with a heat bath at constant temperature<br />
T , then a process is reversible if and only if<br />
it is quasi-static. In this case the reversible work Wr is<br />
the difference in free energy ∆F between the final and<br />
the initial state. If the system is quasi-statically driven<br />
from the final state back to the initial state, then the<br />
same amount of work Wr = ∆F will be retrieved from<br />
the system. However, if the system is driven at a finite<br />
speed, then the work performed during the process<br />
is random and is generally greater than the reversible<br />
work. The excess work Wd = W − ∆F is dissipated<br />
to the reservoir in the form of heat, leading to a total<br />
entropy production ∆iS = Wd/T . Crooks’ fluctuation<br />
relation is a statement about the asymmetry of the work<br />
distributions during a non quasi-static process and the<br />
corresponding reverse process. It links the probability<br />
P(W) to perform a certain amount W of work when<br />
driving the system from the initial state to the final state<br />
to the probability ¯ P(−W) of performing the opposite<br />
amount when performing the reverse process [2]:<br />
<br />
P(W) W − ∆F<br />
¯P(−W)<br />
= exp . (1)<br />
kBT<br />
The fluctuating lattice-Boltzmann model (FLBM) is a<br />
stochastic lattice model for a thermal ideal gas [3]. It<br />
provides a simple model for investigating the fluctuating<br />
dynamics of isothermal processes [4]. The FLBM<br />
simulates an ideal gas in contact with a heat bath and<br />
subjected to a force field per unit mass f = − ∇φλ, derived<br />
from a potential φλ(r). It consists of mass densities<br />
{ni} b i=1 moving along the edges of a Bravais lattice<br />
{r} according to a finite set of b velocities {ci} b i=1 .<br />
The dynamics takes place in discrete time. Each time<br />
step is divided into a collision and a propagation step.<br />
During the propagation step the post-collisional populations<br />
{n∗ i } are simply propagated according to the set<br />
of velocities {ci}:<br />
ni(r + ci,t + 1) = n ∗ i (r,t). (2)<br />
During the collision step the populations at each node<br />
are randomly shuffled such that at each node r the<br />
mass ρ(r,t) = <br />
i ni(r,t) and momentum j(r,t) =<br />
<br />
i ni(r,t)ci densities are exactly conserved and that<br />
the local stress <br />
i nici,αci,β relaxes to and fluctuates<br />
around the Euler stress ρkBTδα,β +ρvαvβ, where α and<br />
β are the Cartesian coordinates, δα,β = 1 if α = β and 0<br />
otherwise, and v = j/ρ is the local fluid velocity 2 . The<br />
effect of the body force f is to increase the momentum<br />
density by ρ f at each time step.<br />
At thermal equilibrium, the density at point r fluctuates<br />
around its mean value given by the Boltzmann factor<br />
〈ρ(r)〉eq ∝ exp(−φλ(r)/kBT). The potential energy<br />
V [ρ,φλ] = <br />
r ρ(r)φλ(r) of the system changes during<br />
one time step as λ changes to λ + δλ, with an amount<br />
of work δW performed on the system:<br />
δW = V [ρ,φλ+δλ] − V [ρ,φλ] = <br />
r<br />
ρ(r) ∂φλ<br />
δλ (3)<br />
∂λ<br />
for small δλ. The total work W performed when<br />
switching λ from 0 to 1 in steps of δλ is given by:<br />
W =<br />
1<br />
0<br />
δW<br />
δλ<br />
dλ. (4)<br />
The time reversed process is obtained by switching λ<br />
from 1 back to 0 in steps of δλ.<br />
Fig. 1 shows examples of distributions of the work performed<br />
during a non quasi-static process (solid lines)<br />
and the work extracted during the corresponding reverse<br />
process (dashed lines). These distributions were<br />
obtained with the potential<br />
<br />
φλ(r) = λA cos 2π x<br />
<br />
+ 1<br />
(5)<br />
l<br />
where A = 0.01 is the amplitude of the potential and<br />
l = 100 the length of the lattice.<br />
1 We consider the work performed on the system, which is the opposite of the work extracted.<br />
2 For a detailed description of the dynamics of the model, see [3]<br />
68 Selection of Research Results
