tel-00559107, version 1 - 24 Jan 2011<br />

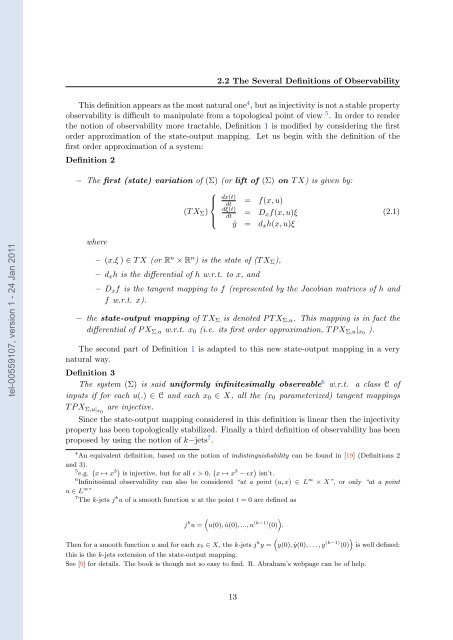

2.2 The Several Definitions of Observability<br />
This definition appears as the most natural one 4 , but as injectivity is not a stable property<br />
observability is difficult to manipulate from a topological point of view 5 . In order to render<br />
the notion of observability more tractable, Definition 1 is modified by considering the first<br />
order approximation of the state-output mapping. Let us begin with the definition of the<br />
first order approximation of a system:<br />
Definition 2<br />
− The first (state) variation of (Σ) (or lift of (Σ) on TX) is given by:<br />
⎧<br />
⎪⎨<br />
(TXΣ)<br />
⎪⎩<br />
dx(t)<br />
dt<br />
dξ(t)<br />
dt<br />
= f(x, u)<br />
= Dxf(x,<br />
ˆy =<br />
u)ξ<br />
dxh(x, u)ξ<br />
where<br />
– (x,ξ ) ∈ TX (or R n × R n ) is the state of (TXΣ),<br />
– dxh is the differential of h w.r.t. to x, <strong>and</strong><br />
(2.1)<br />
– Dxf is the tangent mapping to f (represented by the Jacobian matrices of h <strong>and</strong><br />
f w.r.t. x).<br />
− the state-output mapping of TXΣ is denoted PTXΣ,u. This mapping is in fact the<br />
differential of PXΣ,u w.r.t. x0 (i.e. its first order approximation, TPXΣ,u|x0 ).<br />
The second part of Definition 1 is adapted to this new state-output mapping in a very<br />
natural way.<br />
Definition 3<br />
The system (Σ) is said uniformly infinitesimally observable 6 w.r.t. a class C of<br />
inputs if for each u(.) ∈ C <strong>and</strong> each x0 ∈ X, all the (x0 parameterized) tangent mappings<br />
TPX Σ,u|x0 are injective.<br />
Since the state-output mapping considered in this definition is linear then the injectivity<br />
property has been topologically stabilized. Finally a third definition of observability has been<br />
proposed by using the notion of k−jets 7 .<br />
4<br />
An equivalent definition, based on the notion of indistinguishability can be found in [19] (Definitions 2<br />
<strong>and</strong> 3).<br />
� 5 3<br />
e.g. x ↦→ x � is injective, but for all ɛ > 0, � x ↦→ x 3 − ɛx � isn’t.<br />
6 ∞<br />
Infinitesimal observability can also be considered “at a point (u, x) ∈ L × X”, or only “at a point<br />
u ∈ L ∞ ”<br />
7 The k-jets j k u of a smooth function u at the point t = 0 are defined as<br />
j k u =<br />
�<br />
u(0), ˙u(0), ..., u (k−1) �<br />
(0) .<br />
Then for a smooth function u <strong>and</strong> for each x0 ∈ X, the k-jets j k y =<br />
�<br />
y(0), ˙y(0), . . . , y (k−1) �<br />
(0) is well defined:<br />
this is the k-jets extension of the state-output mapping.<br />
See [9] for details. The book is though not so easy to find. R. Abraham’s webpage can be of help.<br />
13
