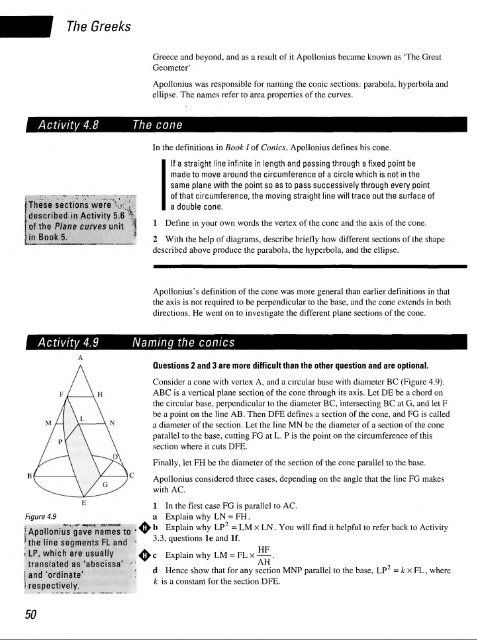

The Greeks<br />
Activity 4.8 The cone<br />
These sections were f<br />
described in Activity 5.6<br />
<strong>of</strong> the Plane curves unit<br />
in Book 5,<br />
Activity 4.9 Naming the conies<br />
M<br />
Figure 4.9<br />
Apollonius gave names to<br />
the line segments FL and<br />
LP, which are usually<br />
translated as 'abscissa'<br />
and 'ordinate'<br />
respectively.<br />
50<br />
Greece and beyond, and as a result <strong>of</strong> it Apollonius became known as The Great<br />
Geometer'<br />
Apollonius was responsible for naming the conic sections: parabola, hyperbola and<br />
ellipse. The names refer to area properties <strong>of</strong> the curves.<br />
In the definitions in Book I <strong>of</strong> Conies, Apollonius defines his cone.<br />
If a straight line infinite in length and passing through a fixed point be<br />
made to move around the circumference <strong>of</strong> a circle which is not in the<br />
same plane with the point so as to pass successively through every point<br />
<strong>of</strong> that circumference, the moving straight line will trace out the surface <strong>of</strong><br />
a double cone.<br />
1 Define in your own words the vertex <strong>of</strong> the cone and the axis <strong>of</strong> the cone.<br />
2 With the help <strong>of</strong> diagrams, describe briefly how different sections <strong>of</strong> the shape<br />
described above produce the parabola, the hyperbola, and the ellipse.<br />
Apollonius's definition <strong>of</strong> the cone was more general than earlier definitions in that<br />
the axis is not required to be perpendicular to the base, and the cone extends in both<br />
directions. He went on to investigate the different plane sections <strong>of</strong> the cone.<br />
Questions 2 and 3 are more difficult than the other question and are optional.<br />
Consider a cone with vertex A, and a circular base with diameter BC (Figure 4.9).<br />
ABC is a vertical plane section <strong>of</strong> the cone through its axis. Let DE be a chord on<br />
the circular base, perpendicular to the diameter BC, intersecting BC at G, and let F<br />
be a point on the line AB. Then DFE defines a section <strong>of</strong> the cone, and FG is called<br />
a diameter <strong>of</strong> the section. Let the line MN be the diameter <strong>of</strong> a section <strong>of</strong> the cone<br />
parallel to the base, cutting FG at L. P is the point on the circumference <strong>of</strong> this<br />
section where it cuts DFE.<br />
Finally, let FH be the diameter <strong>of</strong> the section <strong>of</strong> the cone parallel to the base.<br />
Apollonius considered three cases, depending on the angle that the line FG makes<br />
with AC.<br />
1 In the first case FG is parallel to AC.<br />
a Explain why LN = FH.<br />
b Explain why LP 2 = LM x LN. You will find it helpful to refer back to Activity<br />
3.3, questions le and If.<br />
TTT}<br />
c Explain why LM = FL x ——.<br />
7<br />
d Hence show that for any section MNP parallel to the base, LP = k x FL, where<br />
k is a constant for the section DFE.
