Activity 7.2 Reflecting on Descartes, 7<br />
Figure 7.5<br />
Activity 7.3<br />

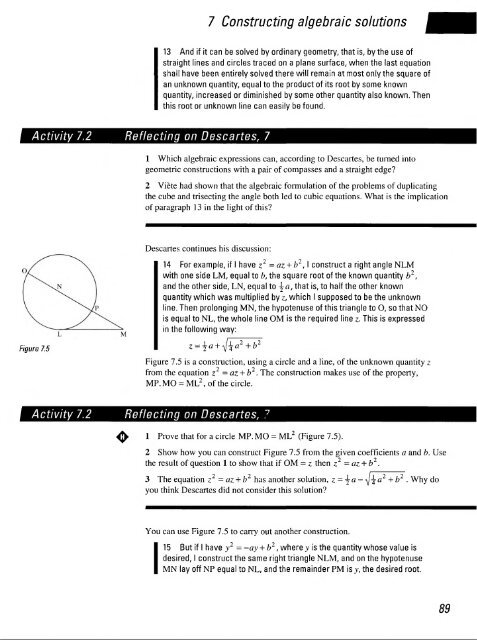

7 Constructing algebraic solutions<br />
13 And if it can be solved by ordinary geometry, that is, by the use <strong>of</strong><br />
straight lines and circles traced on a plane surface, when the last equation<br />
shall have been entirely solved there will remain at most only the square <strong>of</strong><br />
an unknown quantity, equal to the product <strong>of</strong> its root by some known<br />
quantity, increased or diminished by some other quantity also known. Then<br />
this root or unknown line can easily be found.<br />
1 Which algebraic expressions can, according to Descartes, be turned into<br />
geometric constructions with a pair <strong>of</strong> compasses and a straight edge?<br />
2 Viete had shown that the algebraic formulation <strong>of</strong> the problems <strong>of</strong> duplicating<br />
the cube and trisecting the angle both led to cubic equations. What is the implication<br />
<strong>of</strong> paragraph 13 in the light <strong>of</strong> this?<br />
Descartes continues his discussion:<br />
14 For example, if I have z 2 = az + b 2 , 1 construct a right angle NLM<br />
with one side LM, equal to b, the square root <strong>of</strong> the known quantity b 2 ,<br />
and the other side, LN, equal to ^-a,that is, to half the other known<br />
quantity which was multiplied by z, which I supposed to be the unknown<br />
line. Then prolonging MN, the hypotenuse <strong>of</strong> this triangle to O, so that NO<br />
is equal to NL, the whole line OM is the required line z. This is expressed<br />
in the following way:<br />
Figure 7.5 is a construction, using a circle and a line, <strong>of</strong> the unknown quantity z<br />
from the equation z = az + b . The construction makes use <strong>of</strong> the property,<br />
MP. MO = ML2 , <strong>of</strong> the circle.<br />
Reflecting on Descartes, 8<br />
1 Prove that for a circle MP. MO = ML2 (Figure 7.5).<br />
2 Show how you can construct Figure 7.5 from the given coefficients a and b. Use<br />
the result <strong>of</strong> question 1 to show that if OM = z then z 2 = az + b 2 .<br />
3 The equation z 2 = az + b 2 has another solution, z =<br />
you think Descartes did not consider this solution?<br />
a 2 + b 2 . Why do<br />
You can use Figure 7.5 to carry out another construction.<br />
1<br />
15 But if I have y 2 =-ay + b 2 , where y is the quantity whose value is<br />
desired, I construct the same right triangle NLM, and on the hypotenuse<br />
MN lay <strong>of</strong>f NP equal to NL, and the remainder PM is y, the desired root.<br />
89
