SPRS294A − OCTOBER 2005 − REVISED NOVEMBER 2005 DEVICE CONFIGURATIONS (CONTINUED) Table 23. C6713B Device Multiplexed/Shared Pins (Continued) NAME MULTIPLEXED PINS PYP GDP/ ZDP DEFAULT FUNCTION DEFAULT SETTING DESCRIPTION TINP1/AHCLKX0 12 F2 Timer 1 input function McASP0PDIR = 0 (input) [specifically AHCLKX bit] By default, the Timer 1 input and McASP0 clock function are enabled as inputs. For the McASP0 clock to function as an output: McASP0PDIR = 1 (specifically the AHCLKX bit] By default, the Timer 1 output pin is enabled. TOUT1/AXR0[4] 13 F1 Timer 1 output function TOUT1SEL = 0 (DEVCFG register bit) [TOUT1 pin enabled and McASP0 AXR0[4] pin disabled] To enable the McASP0 AXR0[4] pin, the TOUT1SEL bit in the DEVCFG register must be set to 1 (disabling the Timer 1 peripheral output pin function). The AXR4 bit in the McASP0PDIR register controls the direction (input/output) of the AXR0[4] pin McASP0PDIR = 0 input, = 1 output configuration examples Figure 6 through Figure 11 illustrate examples of peripheral selections that are configurable on this device. 40 POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251−1443
configuration examples (continued) DEVICE CONFIGURATIONS (CONTINUED) SPRS294A − OCTOBER 2005 − REVISED NOVEMBER 2005 ED [31:16], ED[15:0] EA[21:2] 32 20 EMIF Clock, System, EMU, and Reset CLKIN, CLKOUT3, CLKMODE0, PLLHV, TMS, TDO, TDI, TCK, TRST, EMU[5:3,1,0], RESET, NMI CE[3:0], BE[3:0], HOLDA, HOLD, BUSREQ, ECLKIN, ECLKOUT, ARE/SDCAS/SSADS, AWE/SDWE/SSWE, AOE/SDRAS/SSOE, ARDY GPIO and EXT_INT GP[15:8, 3:1] GP[0], GP[4](EXT_INT4)/AMUTEIN1, GP[5](EXT_INT5)/AMUTEIN0, GP[6](EXT_INT6), GP[7](EXT_INT7) HPI I2C0 SCL0, SDA0 SCL1, SDA1 I2C1 McASP1 8 AFSX1, AFSR1, ACLKX1, ACLKR1, AHCLKR1, AHCLKX1, AMUTE1 AXR1[7:0] McBSP1 McASP0 8 AXR0[7:0] {TINP0/AXR0[3]} McBSP0 TIMER0 AMUTE0, TINP1/AHCLKX0, AHCLKR0, ACLKR0, ACLKX0, AFSR0, AFSX0 TIMER1 Shading denotes a peripheral module not available for this configuration. DEVCFG Register Value: 0x0000 000F MCBSP0DIS = 1 MCBSP1DIS = 1 TOUT0SEL = 1 TOUT1SEL = 1 EKSRC = 0 HPI_EN(HD14) = 0 GP2EN BIT = 1 (enabling GPEN.[2]) Figure 6. Configuration Example A (2 I2C + 2 McASP + GPIO) POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251−1443 41

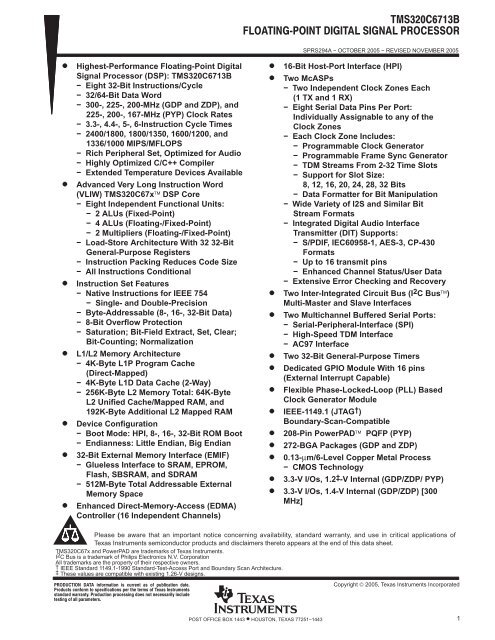

Page 1 and 2: SPRS294A − OCTOBER 2005 − REVIS
Page 3 and 4: REVISION HISTORY SPRS294A − OCTOB
Page 5 and 6: GDP and ZDP 272-Ball BGA package (b
Page 13 and 14: functional block and CPU (DSP core)
Page 15 and 16: Á Á Á Á Á Á ÁÁÁÁÁ ÁÁÁ
Page 35 and 36: DEVICE CONFIGURATIONS (CONTINUED) p
Page 37 and 38: DEVICE CONFIGURATIONS (CONTINUED) S
Page 39: MULTIPLEXED PINS NAME PYP GDP/ ZDP
Page 43 and 44: configuration examples (continued)
Page 45 and 46: configuration examples (continued)
Page 47 and 48: DEVICE CONFIGURATIONS (CONTINUED) S
Page 49 and 50: SIGNAL NAME PYP PIN NO. GDP/ ZDP TY
Page 51 and 52: SIGNAL NAME PYP PIN NO. GDP/ ZDP HD
Page 53 and 54: SIGNAL NAME PYP PIN NO. GDP/ ZDP ED
Page 55 and 56: SIGNAL NAME PYP PIN NO. GDP/ ZDP TY
Page 57 and 58: SIGNAL NAME PYP PIN NO. GDP/ ZDP SP
Page 59 and 60: SIGNAL NAME PYP PIN NO. GDP/ ZDP 11
Page 61 and 62: VSS SIGNAL NAME PYP PIN NO. GDP/ ZD
Page 63 and 64: VSS SIGNAL NAME PYP PIN NO. GDP/ ZD
Page 75 and 76: EDMA module and EDMA selector (cont
Page 77 and 78: PLL and PLL controller SPRS294A −
Page 85 and 86: multichannel audio serial port (McA
Page 87 and 88: multichannel audio serial port (McA
Page 91 and 92:
SPRS294A − OCTOBER 2005 − REVIS
Page 93 and 94:
Page 95 and 96:
Page 97 and 98:
Page 99 and 100:
SPRS294 − OCTOBER 2005 absolute m
Page 101 and 102:
PARAMETER MEASUREMENT INFORMATION S
Page 103 and 104:
PARAMETER MEASUREMENT INFORMATION (
Page 105 and 106:
INPUT AND OUTPUT CLOCKS SPRS294 −
Page 107 and 108:
INPUT AND OUTPUT CLOCKS (CONTINUED)
Page 109 and 110:
ASYNCHRONOUS MEMORY TIMING (CONTINU
Page 111 and 112:
SYNCHRONOUS-BURST MEMORY TIMING tim
Page 113 and 114:
SYNCHRONOUS DRAM TIMING timing requ
Page 115 and 116:
SYNCHRONOUS DRAM TIMING (CONTINUED)
Page 117 and 118:
SYNCHRONOUS DRAM TIMING (CONTINUED)
Page 119 and 120:
HOLD/HOLDA TIMING SPRS294 − OCTOB
Page 121 and 122:
timing requirements for reset †
Page 123 and 124:
EXTERNAL INTERRUPT TIMING SPRS294
Page 125 and 126:
MULTICHANNEL AUDIO SERIAL PORT (McA
Page 127 and 128:
INTER-INTEGRATED CIRCUITS (I2C) TIM
Page 129 and 130:
HOST-PORT INTERFACE TIMING SPRS294
Page 131 and 132:
HOST-PORT INTERFACE TIMING (CONTINU
Page 133 and 134:
MULTICHANNEL BUFFERED SERIAL PORT T
Page 135 and 136:
Page 137 and 138:
Page 139 and 140:
SPRS294 − OCTOBER 2005 switching
Page 141 and 142:
Page 143 and 144:
GENERAL-PURPOSE INPUT/OUTPUT (GPIO)
Page 145 and 146:
MECHANICAL DATA SPRS294 − OCTOBER
Page 147 and 148:
SPRS294 − OCTOBER 2005 packaging
Page 149 and 150:
MECHANICAL DATA MPBG274 - MAY 2002
Page 152:
